Adams Rite, EX88-R628 Interlocking Rim Exit Device, Regular, 36in, Satin Aluminum

Product Overview

The EX88 Interlocking Rim Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device.

The EX88 features a unique bolt design that interlocks the door to the frame for enhanced strength and durability.

Function:

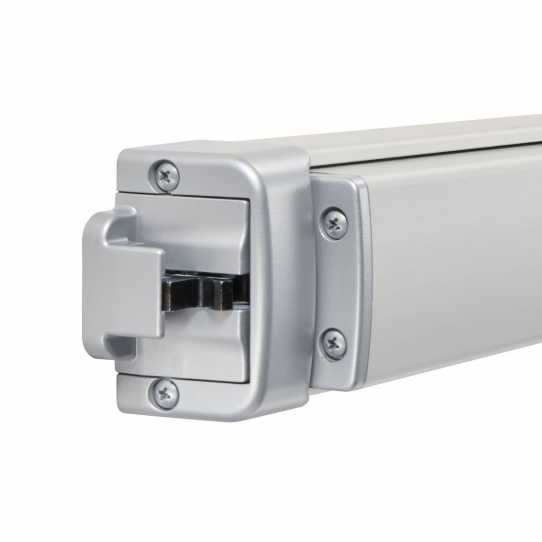

When the door closes, the bolt guard and interlocking bolt close around the strike. The deadlocking slide springs over, which interlocks the bolt to the strike. When the active pushbar is depressed, the deadlocking slide moves back, which allows the door to open by unlocking from the strike.

This unique interlocking bolt design provides unique strength and solid security, and prevents jamb spreading. Exit device capable of opening under 20 lbs preload. Suitable for use on single doors, or with mullion on pairs of doors.

Suited for high, medium and low traffic areas on aluminum, hollow metal and wood applications.

Features

• Made of extruded aluminum with matching metal end caps
• Device is non-handed
• Suitable for use with all door thickness
• Requires minimum 2 inch stile. Fits ultra-narrow, narrow, medium and wide stile aluminum doors
• Standard dogging with 3/16 inch hex key
• Hardened steel strike included
• 628 - Satin Aluminum Clear Anodized finish

Model

• EX88-R628: Interlocking Rim Exit Device, Regular, 36in, Satin Aluminum

Dimensions

• Accomodates Door Opening Widths: 30 inches - 36 inches [762 mm - 914.4mm]
• Active Pushbar Length (as measured with endcaps): 24 inches [609.6mm]
• Back Bar Length: 32-1/8 inches [816mm]

*Device may be field cut to fit opening width between standard lengths by cutting the back bar and filler plate

Certifications:

• UL 305 Panic Hardware
• ANSI/BHMA A156.3-2014 Grade 1
