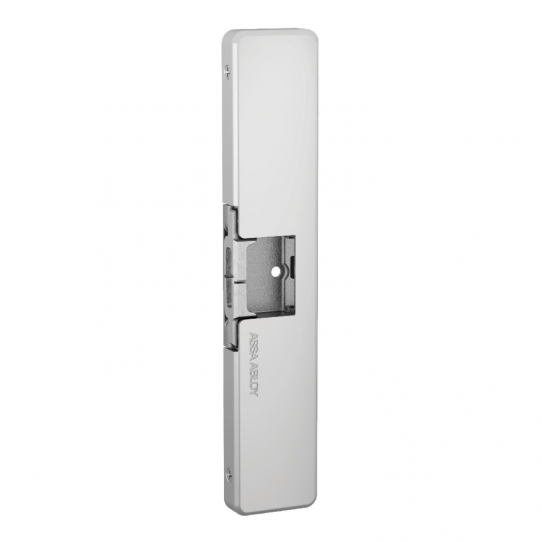

Adams Rite, 7800 Series Electric Strike for Starwheel Interlocking Latchbolts

Product Overview

7800 Electric Strike is designed specifically for use with Adams Rite rim exit devices with a Starwheel/Interlocking latchbolt (8800, 8700 Series, EX88). For use in aluminum, hollow metal or wood applications.

This non-handed, low-profile, surface mounted electric strike features an ultra-compact design and adjustable stainless steel keepers with over 1,500 lbs [680.4 kg] of holding force in fail secure mode. Internally mounted dual solenoid operates on 12 or 24 VDC power. Provides electrical remote control, allowing door to open without actuation of the exit device.

*The 7800 ships with (1) 1/8 inch & (1) 1/16 inch spacer plates to accommodate varying door gaps. Additional spacers available separately.

Specifications

• Fits: Adams Rite 8800, 8700 series and EX88 rim exit devices with starwheel/interlocking latchbolt
• Holding force: over 1,500 lbs (680.4 kg) in fail secure mode
• Voltage: 12 or 24 VDC (dual solenoid)
• Current draw, continuous duty: 0.45 A at 12 VDC; 0.25 A at 24 VDC
• Operation: field selectable fail safe or fail secure
• Spacers: ships with one 1/8 in and one 1/16 in spacer plate
• Frame application: metal, aluminum or wood
• Handing: non-handed; completely surface mounted
• Rating: outdoor rated
• Finish: 630 satin stainless steel
• Certifications: UL 1034 burglary-resistant (suitable for outdoor use); UL 305; UL 294; ANSI/BHMA A156.31 Grade 1; RoHS

Models

• 7800-630 - Electric Strike for Starwheel Interlocking Latchbolts, 630 Satin Stainless finish
