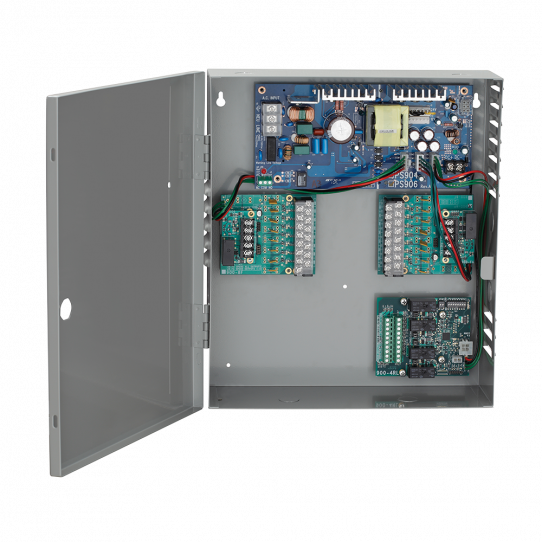

Von Duprin, PS906 Base Power Supply, 6-AMP, UL294

Overview

The Schlage PS906 6-amp power supply is designed to deliver a highly filtered and regulated "clean" output to protect downstream devices. The PS906 is factory and field configurable to suit specific needs.

Installation is simple with a flat mounting board and polarized locking connectors to make in-field expansions virtually plug-and-play. The design also provides easier access to the terminal blocks for connection of electrified devices, such as electric strikes, mag locks and card readers.

Output

• 6-amp, 12/24 VDC constant output
• Output field selectable with jumper
• Clean, consistent power output helps protect the sensitive circuitry of downstream products
• Overload protection prevents too much current being pulled by an overload of devices
• AC input and DC output monitoring circuit with LED indicators

Input

• Universal 120-240 VAC, fused primary input
• Externally visible AC input indicator with isolated SPDT contacts

Specifications

• Model: PS906, 6 A base model with enclosure
• Input Voltage: 120/240 VAC, 50/60 Hz, universal, fused primary
• Output Voltage: 12 or 24 VDC, field selectable with jumper
• Output Current: 6 A constant
• Regulation: Switching supply, 5% regulation, 240 mVpp max ripple
• Class: Class 1 (Class 2 when used with the 900-8P option board)
• Monitoring: AC input indicator with isolated SPDT contacts; AC input and DC output monitoring LEDs
• Option Boards (sold separately): 900-2RS (distribution board, 2 relay output); 900-BB (battery backup option board); 900-BBK (battery backup kit, includes option board and two 7 A/hour batteries); 900-FA (plug-in fire alarm, must be installed on option board)
• Listings: UL 294; ULC-S318; RoHS; FCC Part 15
