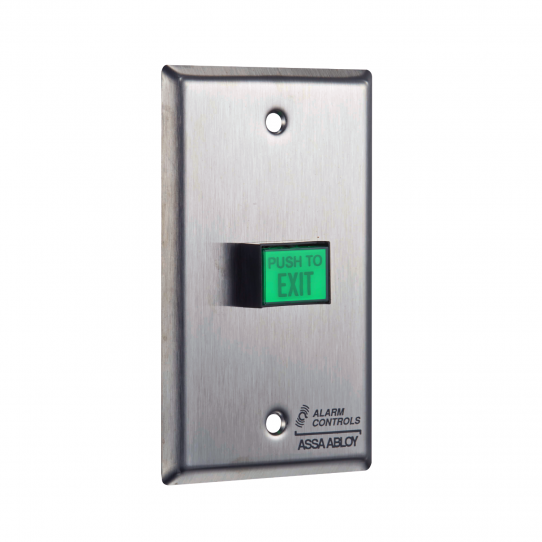

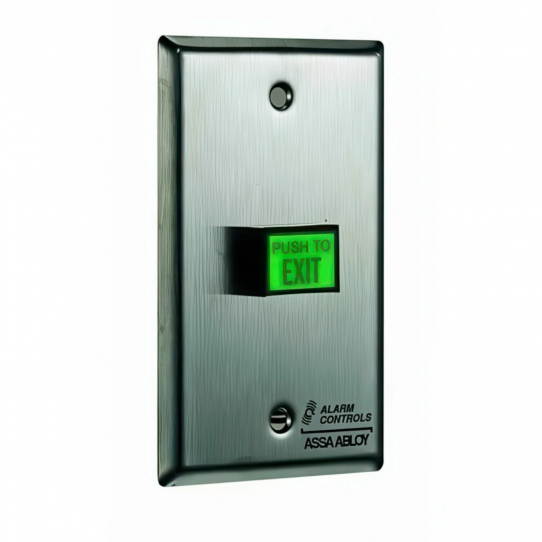

TS-7 Single Gang Illuminated Push Button

Name: TS-7 Single Gang Illuminated Push Button
Brand: maglocks
SKU: TS-7
Price: 86.16 USD
Availability: InStock

$86.16 ~~$101.37~~

Single Gang Illuminated Push Button

The single gang TS-7 and narrow stile TS-9 request to exit stations, with rectangular push button, provide a convenient way to add authorized access control for a variety of applications.

TS-7 and TS-9 are available with timer relay for applications that require door to remain unlocked for a specified time.

Green .650 inch x .875 inch square pushbutton
D.P.D.T Contacts Rated 2A at 12- 28VDC
Switch Illuminated with Hi Brightness LED
Single gang mount, switch depth of 1.25 inch behind plate
UL Listed SA32686

Select Operation: Momentary +$0.00 Alternate Action, Latching TS-7L (on/off) +$30.00

Select Button Label: (no label) standard +$0.00 "Push to Exit" +$0.00

Qty

TS-7 Single Gang Illuminated Push Button

The single gang TS-7 and narrow stile TS-9 request to exit stations, with rectangular push button, provide a convenient way to add authorized access control for a variety of applications.

TS-7 and TS-9 are available with timer relay for applications that require door to remain unlocked for a specified time.

Specifications

Contacts: DPDT, momentary action, rated 3 A at 35 VDC or 120 VAC
Illumination: hi-brightness LED, operates on 12 or 24 VDC
Button: 5/8 in x 7/8 in green, rectangular, labeled PUSH TO EXIT
Plate: single gang, stainless steel
Switch depth behind plate: 1-1/4 in
Temperature range: -25 to 70°C
Leads: colored
Listing: UL 294

Options

Other finishes available (call for details)
Custom legends can be provided (call for details)
Available with timer relay (TS-7 and TS-9)

Also Known As:

TS-7, TS7, ALA300TS7

Manufacturer:

Alarm Controls

Manufacturer Warranty:

1 Year

Model Number:

TS-7

Mount:

Single Gang

Operation Momentary Timer Maintained:

Momentary Alternate Action

Power Requirements:

12VDC

Type:

Basic

UPC Code:

604840970075

Datasheet PDF

Certificate of Compliance PDF

1 Question asked on TS-7 Single Gang Illuminated Push Button • Ask a Question

Q Lee • 06/01/2023, 3:29:33 PM I have a gate with electric "buzzer" release but I must hold down the button until the gate is pushed open. Will this item allow me to push the button once and have the buzzer engage for a few seconds until the gate is opened?

A 06/02/2023, 11:15:52 AM The TS-7 button is available in two switch styles (momentary) or (latching). With the momentary option the switch would cycle for only as long as your finger was on the button, then instantly reset. With the latching option it would cycle between permanent on/off every time the button was pressed. For your application, you would need a button with a built-in timer or a timer relay module (Product# 6062). To better assist with this project, please give us a call direct at 1-866-500-5625
