TS-32 Emergency Door Release Latching Mushroom Pushbutton

$169.15 $199.00

Overview

Rated IP65, Protected against dust and low pressure water spray. 1.5 inch diameter "Emergency Door Release" mushroom button, (1) N/O & (1) N/C Latching contact

More Info +


Specify Model:
Options

Qty

Product Details

Product Overview

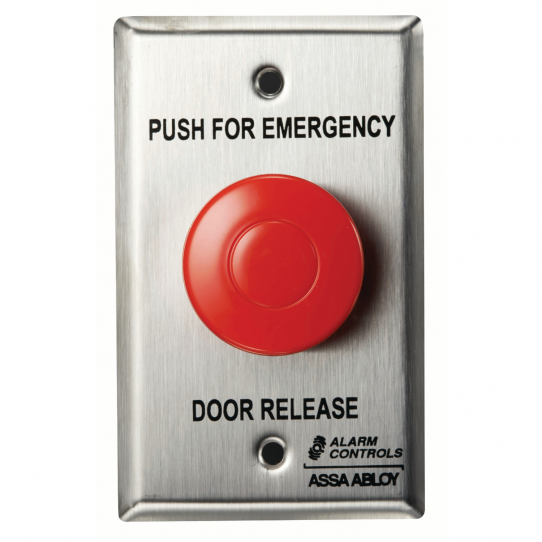

Model TS32 Emergency Door Release, Single Gang Mount

Single gang panic station with latching push button that remains active or inactive until actuated again.

Specifications

  • Rated IP65, Protected against dust and low pressure water spray
  • 1.5 inch Diameter Mushroom Button (select color above)
  • Silkscreened Emergency Door Release
  • One Normally-Open and One Normally-Closed Latching Switch
  • Contacts rated 10A @ 35 VDC or 120 VAC
  • Mounted on single gang stainless steel wallplate
  • Depth behind plate is two inches
  • UL and CSA Certified Components
Also Known As
TS-32, TS32, TS-32R, ALA300TS32
Manufacturer
Alarm Controls
Model Number
TS-32
Mount
Single Gang
Operation Momentary Timer Maintained
Alternate Action
Power Requirements
24VDC/12VDC
Type
Mushroom
UPC Code
604840987097
