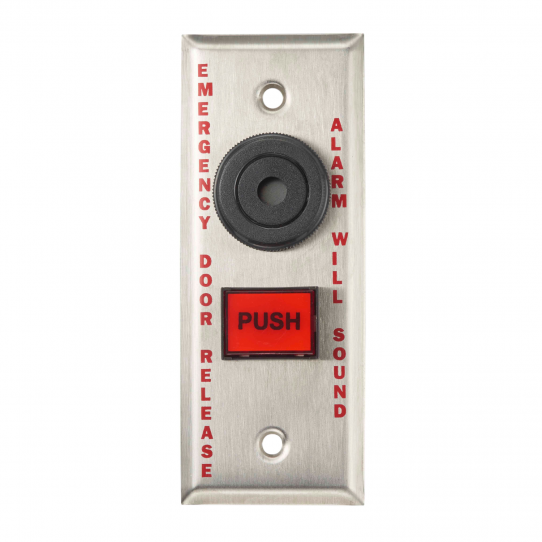

TS-26 Emergency Door Release with Piezo Buzzer, Narrow Mount

$134.34 $158.05

Pressing the latching pushbutton will sound the 85db buzzer and light the switch. The contacts will transfer providing a circuit to release the door.

Pressing the pushbutton again will return the door to the locked position and turn off the light and buzzer.

Read More about TS-26 Emergency Door Release with Piezo Buzzer, Narrow Mount

TS-26 Emergency Door Release

Model TS26 Emergency Door Release, Narrow Mount

Specifications

  • Pushbutton: Red .675 inch x .875 inch rectangular, labeled "Push"
  • Switch: S.P.D.T. latching, illuminated
  • Contact Rating: 3 A @ 35 VDC or 120 VAC
  • Buzzer: 85 dB piezo
  • Voltage: 12 or 24 VDC
  • Plate: 1.75 inch narrow stainless steel wallplate, labeled "Emergency Door Release, Alarm Will Sound"
  • Listings: UL Approved and CSA Certified Components

Also Known As:

TS-26, TS26, ALA300TS26

Manufacturer:

Alarm Controls

Model Number:

TS-26

Mount:

Narrow

Operation Momentary Timer Maintained:

Alternate Action

Power Requirements:

24VDC/12VDC

Type:

Basic

UPC Code:

604840931267
