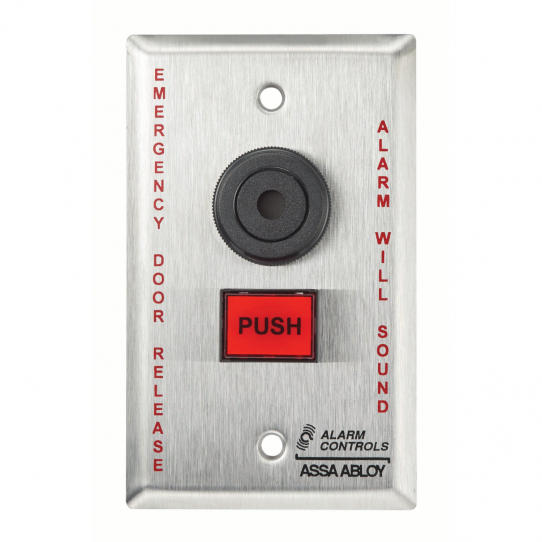

TS-25 Emergency Door Release with Piezo Buzzer, Single Gang

Product Description

Model TS25 Emergency Door Release, Single Gang mount

Alarm Controls TS-25 Pressing the latching pushbutton will sound the 85db buzzer and light the switch.

The contacts will transfer providing a circuit to release the door.

Pressing the pushbutton again will return the door to the locked position and turn off the light and buzzer.

Specifications

• Red .675 inch x .875 inch Rectangular pushbutton
• Pushbutton labeled "Push"
• Plate labeled "Emergency Door Release, Alarm Will Sound"
• S.P.D.T Latching illuminated pushbutton
• Contacts rated 3A @ 35 VDC or 120 VAC
• 85db Piezo buzzer
• 12 or 24 volt DC operation
• UL Approved and CSA Certified Components
