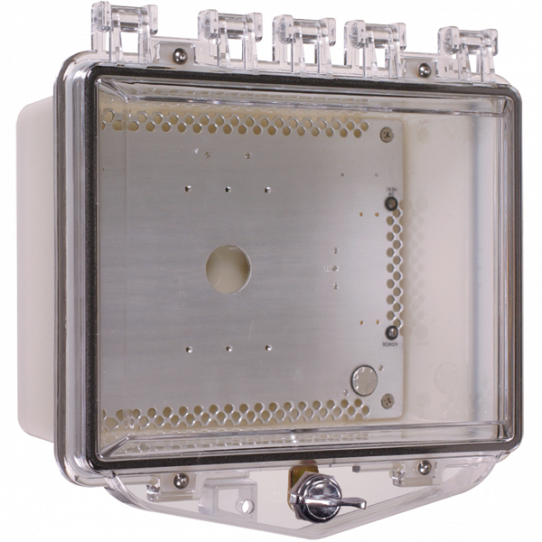

STI-7511A-HTR Heated Polycarbonate Enclosure - Thumb Lock

Product Overview

This enclosure is designed to maintain a temperature above freezing which allows a wide range of devices, components and sensitive units to be installed outdoors, in freezers, unheated warehouses or storage units. The radiant heat plate will prevent LCD displays from becoming sluggish or freezing. Designed to operate on 12, 16.5 or 24 volts and has three thermostats; a control thermostat, over temperature safety thermostat and a low temperature warning which can connect to a supervisory panel.

Features

• The enclosure comes with an exterior thumb lock and an enclosed deep backbox.
• The polycarbonate is backed by a three year guarantee against breakage in normal use (one year on electro mechanical and electronic components).
• Mounting hardware and gaskets are included.

Specifications

• Input Voltage: 12, 16.5 or 24 volts
• Heater Power: 19 W at 12 V; 36 W at 16.5 V (supplied by the standard 40 VA transformer); 77 W at 24 V
• Transformer: 16.5 VAC, 40 VA Class 2, auto-resetting (included)
• Thermostats: Control, over-temperature safety, and low-temperature warning (N/O contact, connects to supervisory panel)
• Indicators: LED for "POWER" and heat cycle "ON"
• Lock: Exterior thumb lock
• Material: UV-stabilized polycarbonate cover, 94V-2 flammability rating
• Polycarbonate Working Range: -40°F to 250°F (-40°C to 121°C)
• Dimensions: 5.59 inches H x 7.53 inches W x 4.04 inches D
• Warranty: 3 years against polycarbonate breakage; 1 year on electromechanical and electronic components
