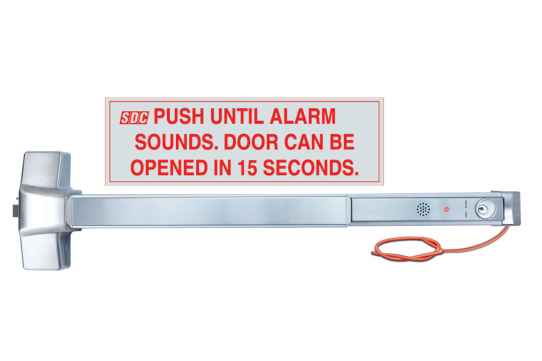

SDC, S6100-101 Delayed Egress Panic Device

Product Overview

When unauthorized egress is initiated by depressing the push pad of the S6000-101, an audible alarm will sound and an irreversible delay period of 15 seconds will begin.

After the delay period has expired, the device unlocks, permitting egress until the device is reset. In a life safety emergency, the device will immediately unlock upon loss of power or when powered by a fire control supervised power supply.

Applications

• Restrict egress of wandering patients
• Control pedestrian traffic
• Reduce shoplifing and theft

Features

• 15 second exit delay, 1 or 2 second nuisance delay
• Built-in Visual and Audible Annunciation
• Key reset / bypass (cylinder sold separately)
• UL294 Listed

Specification

• Low Power Consumption: 540mA @ 24VDC
• Operating Temperature: 0 C to 70 C

Model

• S6101PU36101ND - Rim Mount exit device, Exit Only, Dull Stainless Finish, 36 inch door length, Integrated Delayed Egress, ND Code operation

*Code Compliance*

• NC
• IBC, IFC, NFPA 101, NFPA 1-UFC, UBC, SBC Compliant
• Fixed 15 Exit delay, 1 or 2 second nuisance delay
• California Building Code OSHPD / Manual Power up
• ND
• IBC, IFC, NFPA 101, NFPA 1-UFC, UBC, SBC Compliant
• Fixed 15 Exit delay, 1 or 2 second nuisance delay
• BC
• BOCA National Building Code and Chicago Building Compliant
• 15 second fixed exit delay, 0 second nuisance delay, auto reset 30 seconds after door closure
• BD
• BOCA National Building Code Compliant
• 15 second fixed exit delay, 1 or 2 second nuisance delay, auto reset 30 seconds after door closure

Consult with your Fire Marshall regarding local code requirements.

For more detailed information regarding operation modes, see "Code Compliance Operation Mode.pdf" or give us a call at 1-866-500-5625
