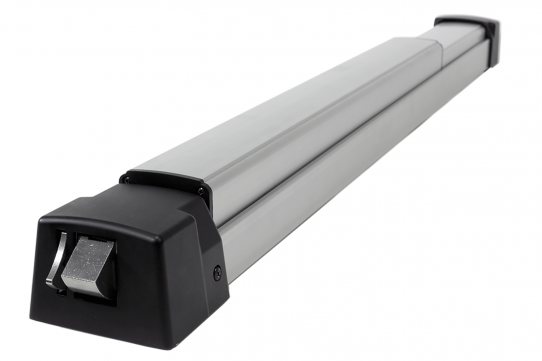

SDC, S5101 Rim Mount Storefront Exit Device, Electrified

Product Overview

SDC’s S5000 series electrified storefront devices are heavy duty, code compliant alternatives to magnetic locks for storefront applications that meet the market need for storefront exit devices with electric latch retraction standard for access control compatibility.

These UL305 panic-rated exit devices are American made, featuring all metal construction that is particularly suited to aluminum glass entrances for both manual and automated door openings and new or retrofit applications.

Features

• Electrified storefront design
• For Aluminum glass doors & frames
• Motorized electric latch retraction and dogging, (24VDC)
• High traffic use
• Made in the USA

Model

• S5101PV36E - Rim, Exit Only, Panic, 628 Aluminum, 36 inches, Motorized ELR & Dogging, 24VDC
• S5101PY36E - Rim, Exit Only, Panic, 335 Black, 36 inches, Motorized ELR & Dogging, 24VDC
• S5101PV42E - Rim, Exit Only, Panic, 628 Aluminum, 42 inches, Motorized ELR & Dogging, 24VDC
• S5101PY42E - Rim, Exit Only, Panic, 335 Black, 42 inches, Motorized ELR & Dogging, 24VDC

Options

• Contact us for Additional Product Questions/Options or Center Pivot Door Applications, 1-866-500-5625

Specification

• Input: 24 VDC
• 700 mA Inrush
• 200 mA Continuous
• Handing: Non-Handed
• Door Thickness: 1-3/4 inches - 2 inches
• Door Stile: Narrow (2-1/8 inches Minimum)
• Weight: 13lbs

Certifications

• UL 305 Panic Hardware
• ANSI/BHMA A156.3 Grade 1

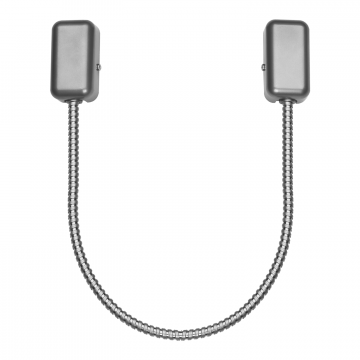

*Low Voltage Power Supply, Wire Transfer Loops & Control Devices (sold separately)
