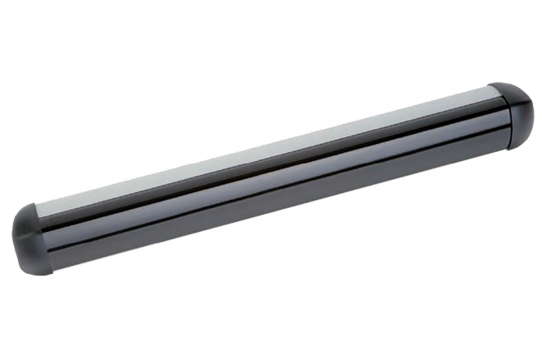

SDC, AUTO-IR Door Mounted Presence Sensors, Black

Product Overview

SDC’s AUTO-IR presence sensors mitigate injury liability and costly damage by detecting stationary objects and slow-moving people in the swing path of an automatic door.

It is designed as a reliable companion accessory for virtually any door operator traffic application to override ADA hold open time and protect operator investment.

AUTO-IR allows re-activation of the door before contact is made during the closing cycle, protecting slow-moving people as well as people trailing behind.

It reliably detects stationary as well as moving objects in the swing path of an automatic door.

Following a door activation, the AUTOIR remains enabled to allow continued automatic non-contact re-activation capability should someone remain in the door opening while the door is open or while it is closing.

Models

• AUTO-IR36Y - Door Mounted Presence Sensor, for 36 inch Door Opening, Black
• AUTO-IR48Y - Door Mounted Presence Sensor, for 48 inch Door Opening, Black

Features

• Simple, one-button calibration setup
• Dual sensors to ensure presence activation (* AUTO-IR48 model only)
• Smooth and safe operation of door
• Exceeds ANSI 156.19 standards
• Proven active IR technology for distance measurement through triangulation
• Optional programming to customize settings

Specifications

• Technology: Active Infrared, Triangulation
• Wavelength: 880nm
  IR Beams: 8 Per Sensor
  # of Sensors: 1 (36 inch), 2 (48 inch)
• Response Time: < 50ms
• Door Type: Swing, Single
• Door Opening: 36 inch>li>
• Mounting Height: Up to 8-4/5 feet
• Weight: 2 lbs
• Operating Voltage: 15 - 37 VDC
• Power Consumption: 3.3 W (Max), 140mA per sensor
• Relay Output: 1 Amp @ 40 VDC SPDT
• Operating Temperature: -4 deg F to 140 deg F
• Type of Protection: IP54

Certifications

• Meets ANSI A156.19 Power Assist And Low Energy Power Operated Doors
• ADA Americans With Disabilities Act
