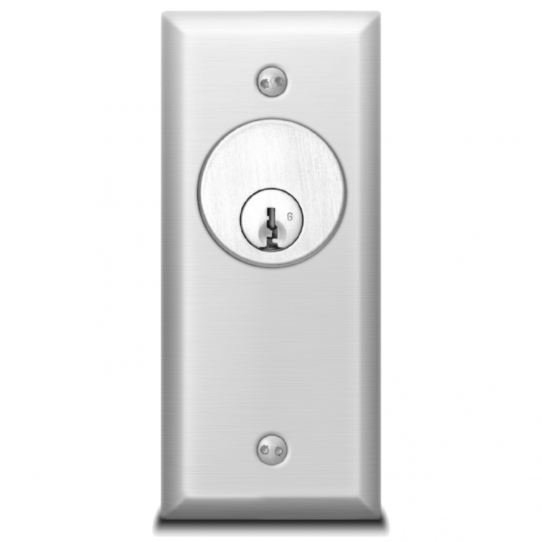

SDC 700 Series Narrow Mount Stainless Steel Key Switch
$84.70
$121.00
SDC Security Door Controls 700 Series Narrow Mount Key Switch
Product Overview
Narrow mount key switches feature a 20 gauge stainless steel faceplate with key cylinder recess and security spanner screws for tamper resistance.
Models
- 701NU SDC Key Switch AA (on-off) SPDT, 6amp.
- 702NU SDC Key Switch Momentary SPDT 6amp.
- 705NU SDC Key Switch AA (on-off) DPDT 6amp.
- 706NU SDC Key Switch Momentary DPDT 6amp.
- 707NU SDC Key Switch (L) Momentary SPDT, (R) Momentary SPDT 6amp.
- 708NU SDC Key Switch (L) Momentary SPDT, (R) AA (on-off) SPDT 6amp.
- 709NU SDC Key Switch (L) AA (on-off) SPDT, (R) AA (on-off) SPDT 6amp.
- 711NU SDC Key Switch (2)Momentary SPDT 6amp.
- 712NU SDC Key Switch (L) Momentary DPDT, (R) AA (on-off) DPDT 6amp.
- 713NU SDC Key Switch (L) AA (on-off) DPDT, (R) AA (on-off) DPDT, 6amp.
Specifications
- Faceplate: 20-gauge stainless steel, narrow mount, with key cylinder recess
- Tamper Resistance: Vandal resistant cylinder recess; security spanner screws
- Wire Leads: 7 inch
- Cylinder Compatibility: 1-1/8 inch and 1-1/4 inch standard and interchangeable core mortise key cylinders (supplied by others)
- Actuator: Large actuator assembly for positive & consistent circuit activation
- Contact Rating: 6 A, see model list
- Standard Finish: U-630 dull stainless steel
Options
- Anti-Tamper switch
- Green and Red LED Status Indicators
- Buzzer
- May be wired to sound when door is unlocked
- Key cylinder with two keys
Special finishes
- U-630 Dull Stainless Steel (standard)
- S-629 Bright Stainless Steel
- C-605 Bright Brass
- P-625 Bright Chrome
- D-606 Dull Brass
- H-613 Oil Rubbed Bronze
- Q-626 Dull Chrome
