SDC 700 Series Double Gang Mount Stainless Steel Key Switch
Processing...

SDC 700 Series Double Gang Mount Stainless Steel Key Switch

$90.30 $129.00

Overview

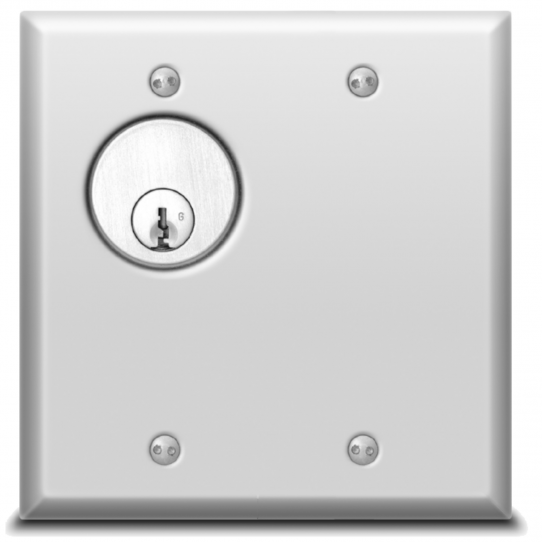

Double gang wall mount key switches feature a 20 gauge stainless steel faceplate with key cylinder recess and security spanner screws for tamper resistance.

More Info +


Select Model:
Specify Finish (U - 630 Stainless Standard, all other special order 4-weeks):
Key Cylinder:
Optional Indicator Lights:
Options

Qty

Product Details

SDC Security Door Controls 700 Series Double Gang Mount Key Switch

Product Overview

Double gang mount key switches feature a 20 gauge stainless steel faceplate with key cylinder recess and security spanner screws for tamper resistance.

Models

  • 701TU SDC Key Switch AA (on-off) SPDT, 6amp.
  • 702TU SDC Key Switch Momentary SPDT 6amp.
  • 704TU SDC Key Switch Timer module, Adj. 1-60 Sec. SPDT 2amp,
  • 705TU SDC Key Switch AA (on-off) DPDT 6amp.
  • 706TU SDC Key Switch Momentary DPDT 6amp.
  • 707TU SDC Key Switch (L) Momentary SPDT, (R) Momentary SPDT 6amp.
  • 708TU SDC Key Switch (L) Momentary SPDT, (R) AA (on-off) SPDT 6amp.
  • 709TU SDC Key Switch (L) AA (on-off) SPDT, (R) AA (on-off) SPDT 6amp.
  • 710TU SDC Key Switch (L) Timer Module 1-60 Sec. 2amp SPDT, (R) AA (on-off) SPDT 6amp.
  • 711TU SDC Key Switch (2)Momentary SPDT 6amp.
  • 712TU SDC Key Switch (L) Momentary DPDT, (R) AA (on-off) DPDT 6amp.
  • 713TU SDC Key Switch (L) AA (on-off) DPDT, (R) AA (on-off) DPDT, 6amp.

Specifications

  • Vandal resistant cylinder recess
  • 20-gauge stainless steel faceplate
  • Security spanner screws
  • 7 inch Wire Leads
  • Compatible with 1-1/8 inch and 1-1/4 inch standard and interchangeable core mortise key cylinders (supplied by others).
  • Large actuator assembly for positive and consistent circuit activation.

Options

  • Anti-Tamper switch
  • Green and Red LED Status Indicators
  • Buzzer May be wired to sound when door is unlocked.
  • 85 db siren, 4V-25VDC, 15mA
  • Key cylinder with two keys
  • Special finishes, Chrome, Brass, Bronze, Dark Bronze
Current Selling Price
90.3
Maglocks.com Rating
Good
Manufacturer
SDC Security
Manufacturer Warranty
2 Year
Model Number
700 Series Double Gang
Mount
Double Gang
Power Requirements
24VDC/12VDC
Switch Type
S.P.D.T. (Single Pole Double Throw),D.P.D.T. (Double Pole Double Throw),Momentary Action,Alternate Action,Electronic Time Delay
Type
Basic
