SDC 621PJ 1amp 12/24VDC Power Supply **DISCONTINUED**

Product Overview

The 621 Series access control power supplies are designed to support access controls and electric locking devices.

Equipped with two power limited outputs, the modular design enables versatility for installations with or without battery back-up or fire command center interface for emergency lock release.

The SDC 621 Value Series is low cost while loaded with value added features such as, field selectable 12/24VDC output, emergency release input, emergency release manual reset, battery charger and 2 control inputs.

Specifications

• 621PJ Input: 115VAC 60Hz, 0.6amp
• Output: Filtered and electronically regulated 1amp @ 12/24VDC (field selectable)
• Battery Charger: 150mA @ 12VDC *batteries sold separately

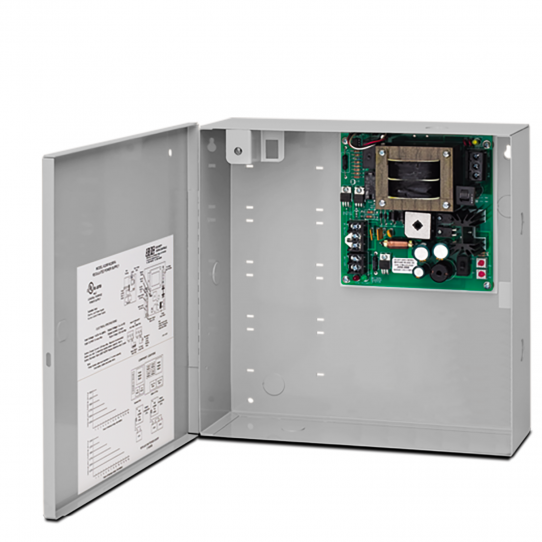

• Power Supply Board: 4 inch W x 3 inch H x 1.625 inch D (102mm x 76mm x 42mm)
• Enclosure: 7.25 inch W x 8.375 inch W x 3.625 inch D (184mm x 213mm x 92mm)
