SDC, 602RFL Power Supply Board Only (no box)
Processing...

30% Off MSRP

SDC, 602RFL Power Supply Board Only (no box)

$163.80 $234.00

Overview

1 Amp, class 2 output, Power Supply Board (less box)

Field Selectable 12VDC or 24VDC outputs

More Info +



Qty

Product Details

PRODUCT OVERVIEW

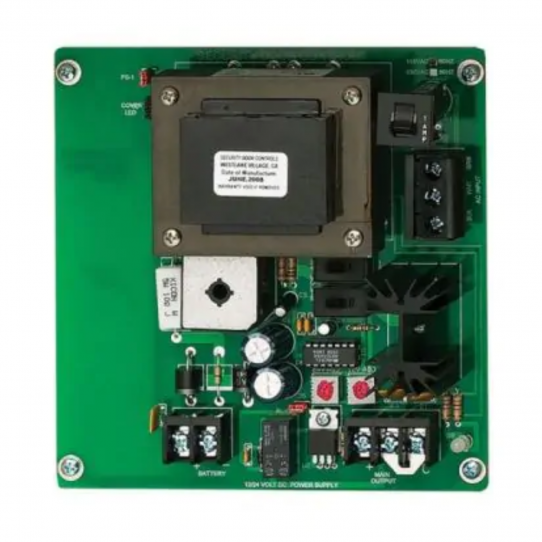

1 Amp, class 2 output, Power Supply Board (less box). The SDC 602RFL is a modular access control 1 Amp power supply. All SDC power supplies are equipped with a high performance transformer and highly reliable electronic components. Filtering and output voltage regulation provide protection and ensure the longevity of all system components. With the addition of SDC programmable controllers or relay modules, the user-friendly modular designs ensure versatility, interface capability and easy installation of electric locking devices, access controls and related safety equipment. The unit does not include an enclosure.

FEATURES

  • 1 Amp
  • Field Selectable 12VDC or 24VDC outputs
  • LED Status Indicators
  • Fire Alarm Input for fail-safe lock release
  • Battery Charging Output

Specifications

  • Input Voltage: 115VAC @60hz
  • Output Voltage: 12/24 VDC (selectable)
  • Output Current: 1.0 Amp

MODEL

  • 602RFL: 1 Amp, class 2 output, less box
Also Known As
SZ-602RFL, SDC-602RFL
Manufacturer
SDC Security
Model Number
602RFL
UPC Code
712905235561
