SDC, 482S-KIT Wireless Push Plate Switch Kit - SQUARE

$415.65 $489.00

Overview

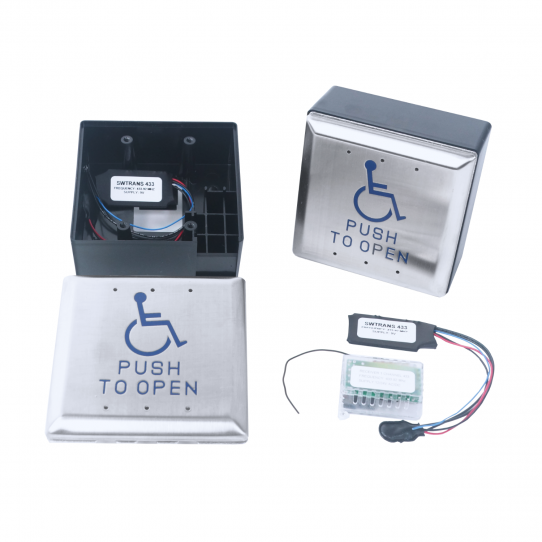

Designed to control automatic door or electrified locking hardware with wireless Push Plate Switch access. Kit contains two 4-1/2 inch Push Plate Switches (SQUARE) two matching surface mount back boxes (SQUARE) two wireless transmitters (400W1-433, 9V Batteries included) and one wireless nano receiver (400RC433).

More Info +


Qty

Product Details

Product Overview

Designed to control automatic door or electrified locking hardware with wireless Push Plate Switch access. Kit contains two 4-1/2 inch Push Plate Switches (SQUARE) two matching surface mount back boxes (SQUARE) two wireless transmitters (400W1-433, 9V Batteries included) and one wireless nano receiver (400RC433).

Features

  • Pressing Any Part of the Push Plates 4 ½ inch Active Area Causes Switch Actuation
  • Surface Box Mount
  • Transmitter: Pre-Wired for Quick Installation
  • Transmitter Antenna Magnifies Signal Receiver Designed to Control Automatic Closing and Anti-Burglar Systems

Model

  • 482S-KIT  Wireless Push Plate Switch kit - SQUARE Switches

Specification

  • Heavy 18 Gauge, 630/US32D Satin Stainless Steel Standard
  • SPDT, 15amps @ 125/250VAC UL 1054, CSA Listed
  • Blue, Ability Symbol, PUSH TO OPEN
  • 12/24 VAC/DC (Jumper select) - (Receiver)
  • C-NO - (Receiver)
  • 433.92 MHz (Receiver)
  • 9V Battery *included (transmitter)
  • Trigger input, Momentary N.O Dry Contact (transmitter)
  • -20°F — 100°F (transmitter)

Dimensions

  • 4-1/2 inch Square push plates

Made in the USA

Finish
Stainless Steel
Maglocks.com Rating
Best
Manufacturer
SDC Security
Manufacturer Warranty
5 Year
Power Requirements
24VDC/12VDC
Usage
Weather Resistant
