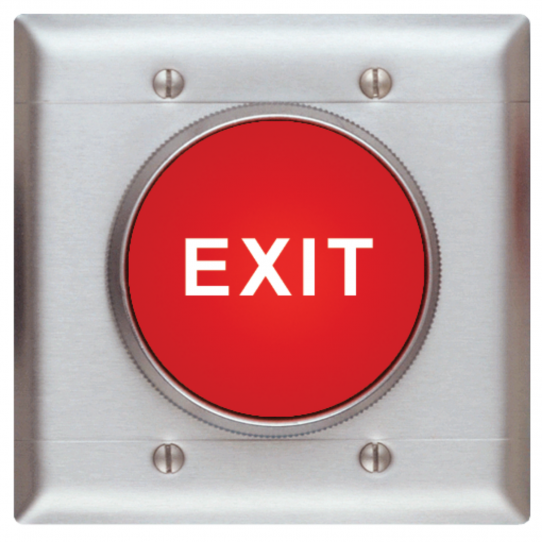

SDC 440 Series Double Gang Mushroom Exit Button

SDC Security Door Controls 440 Series Double Gang Mount 2 5/8 inch MUSHROOM EXIT SWITCH

Product Overview

These heavy-duty industrial series switches incorporate a 2 5/8 inch round mushroom with heavy-duty water resistant contacts and are ideal for high frequency use.

Models

• 441 Alternate Action, DPST, "no label"
• 442 Momentary, DPST, "EXIT" label
• 443 Timer, adj. 1-60 sec., 2amp SPDT, "EXIT" label
• 444 Momentary, 2-DPST, "EXIT" label

Specifications

• Choice of red or green mushroom
• Double Gang Mount
• Heavy Duty stainless steel faceplate
• 2.625 inch diameter mushroom button
• Heavy-duty water resistant contacts

Options

• Red or Green Button
• Green and Red LED Status Indicators
• Special finishes, Chrome, Brass, Bronze, Dark Bronze

Product Use

The conspicuous 440 heavy duty industrial series switch assemblies incorporate a 2 5/8 inch diameter mushroom button and heavy duty weather resistant contacts. The large double gang mushroom assembly includes a heavy duty steel bezel around the button to guard against abuse. When utilized as an exit or REX switch, the assembly is easy to activate and stands out for persons without prior knowledge of egress operation. In addition to egress applications,the large assembly is ideal as an easy to activate emergency/panic alarm switch.

• 2 5/8 inch mushroom exit switches
• Heavy duty to withstand impact
• Water resistant contacts
• Easy emergency/panic activation
• Ideal for high frequency use
• Screw terminal wire connections
• Red button standard
