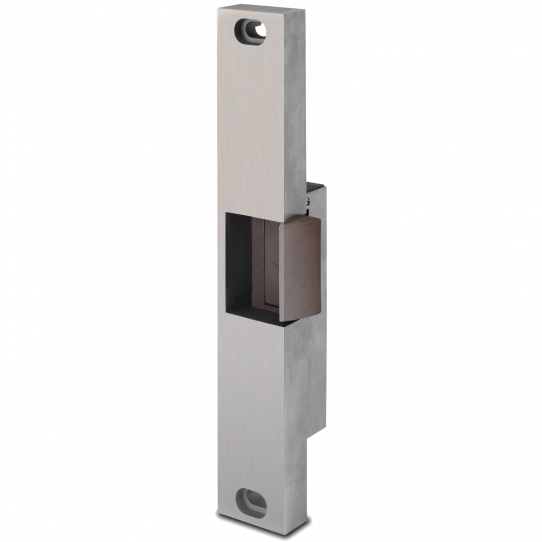

SDC 30 Series RIM Mount Electric Strike

$425.00 $500.00

Overview

The SDC 30 Series electric strike is designed for rim mount exit devices. Strike is non-handed, fail secure is standard with a fail safe optional. Standard finish is stainless steel 630. 12/24V AC/DC.

More Info +


Model [Please select Power Requirement]:
Special Order Finish [630 Finish Standard - All other finishes are Special order, no cancellation, no returns]:
Options

Qty

Product Details

The SDC 30-4 Series electric strike is designed for use with rim mount exit devices having pullman type latchbolts or the top pullman latch of a surface vertical-rod exit device.

Product Overview

  • All stainless steel for corrosion resistance and strength
  • Tamper resistant, heavy-duty construction
  • Set screws for adjustment lockdown
  • Milled ramps to better accommodate deadlatches
  • Integrated shim for quick customization of faceplate thickness (3/4" to 1/2")
  • In-frame horizontal adjustability
  • Pullman keeper
  • Non-handed, reversible
  • Failsecure (standard) Failsafe (optional)
  • ¾” keeper depth
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.

Model

  • 30-4 Electric Strike with 0.75" (19mm) faceplate. Except .5" (12.7mm) without 1/4" spacer.

Specifications

  • 12 0.51 Amp @ 12VDC, 24 OHMS
  • 24 0.25 Amp @ 24VDC, 96 OHMS

Finish

  • U 630 Stainless Steel (standard)
  • D 606 Dull Brass
  • P 625 Bright Chrome
  • G 612 Dull Bronze
  • Q 626 Dull Chrome
  • H 613 Oil Rubbed Bronze
  • S 629 Bright Stainless Steel

Options

  • FS Failsafe operation
  • LBM-30 Latchbolt Monitor
  • LCM-30 Locking Cam Monitor
  • BR64XL Rectifier for AC operation

Listings

  • UL 10C, 3 hour fire-rated (fail secure only)
  • UL1034, burglary-resistant rated
  • ANSI/BHMA A156.31, Grade 1
  • CAN4-S104 (ULC-S104) fire door conformant
  • Department of Defense, DOD approved
  • New York City accepted
For Use With
Rim Mount Exit Device
Grade
Grade 1
Maglocks.com Rating
Better
Manufacturer
SDC Security
Manufacturer Warranty
2 Year
Model Number
30 series
Power Requirements
24V/12V AC/DC
Status Monitor
Optional
