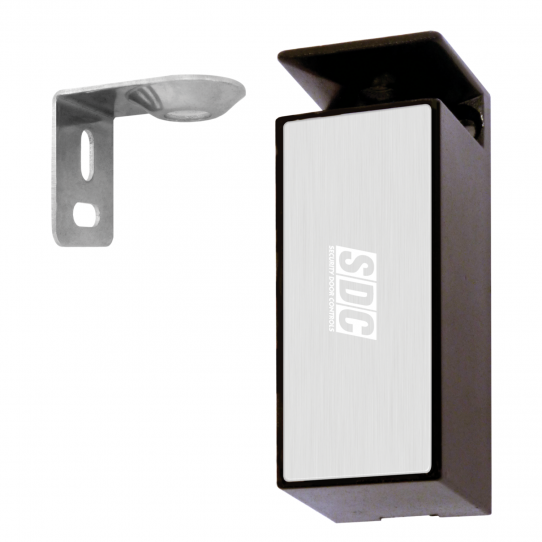

SDC Security Door Controls 290 Micro Cabinet Lock
$86.80
$124.00
Product Overview
Maglocks.com Rated - Best Electronic Cabinet Lock!
The 290 Micro Cabinet Lock is designed to electronically secure cabinets and drawers. The need for keys is eliminated and the addition of a keypad or remote control of your choice provides true access control and convenience of use.
- Pharmaceutical cabinets and drawers
- Retail display cases and drawers
- Gun cabinets
- File cabinets
- Utility cabinets and drawers
- Museum display cases
Features
- For swinging or sliding doors
- Failsecure continuous duty
- Field reversible solenoid for failsafe operation
- Dual 12/24VDC
- Nonhanded
- 600lbs of holding force
Model
- 290: Micro cabinet lock, SDC Cabinet Lock, Failsafe/Failsecure, 12/24VDC
- 290LS: Micro cabinet lock with lock status switch, SDC Cabinet Lock, Failsafe/Failsecure, 12/24VDC w/Locked Status Output
Specifications
- Dual Voltage 300-150mA @ 12/24VDC
- Dimensions 3-1/4 inches L x 1-1/8 inches W x 1-1/8 inches D (82.5 x 28.5 x 28.5mm)
Also Known As:
SZ-290, SDC-290, SZ-290LS, SDC-290LSFinish:
BlackManufacturer:
SDC SecurityManufacturer Warranty:
5 YearModel Number:
290Power Requirements:
24VDC/12VDCStatus Monitor:
OptionalUPC Code:
712905114675
6 Questions asked on SDC Security Door Controls 290 Micro Cabinet Lock •
Q
Derek Anderson • 10/06/2021, 6:49:20 AM
Is this weather rated? I have a great use for this, but it's outside and will get wet.
A
10/06/2021, 5:18:02 PM
The 290 cabinet lock is not weather rated and is not recommended for use in wet environments. However, we do carry a variety of other electronic locks that are suitable for direct outdoor applications. Give us a call and we would be happy to go over all options 1-866-500-5625
Q
Shawn Pyykola • 11/07/2023, 5:57:54 PM
What is the weight per unit?
A
11/08/2023, 11:58:21 AM
The weight of the 290 electronic cabinet lock with the strike plate comes out to around 5oz. To go over any additional questions regarding this product feel free to give us a call at 1-866-500-5625
