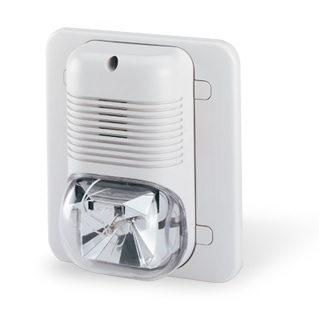

Schlage, 1910S-1 Electronic Horn and Strobe

PRODUCT OVERVIEW

Electric horns are designed for use as an immediate local audible warning device incorporated in a security system. 1910 celica horns have six combinations of volume using continuous or intermittent tone that are easy to configure.

Units are flush (partially recessed) or surface mounted using a 4 inch black box and attached using two #8-32 X 4 inch screws.

Surface and flush mounting kits are included with all horns.

FEATURES

• Audible warning has six combinations of volume using intermittent or continuous tone with loudest tested to 102 dba
• Strobe option adds visual warning indication
• Intended for indoor use only
• Flush mount to wall over a standard one-gang or two-gang electrical box
• Surface mount using pull through wiring and the backbox kit included with the product
• Horn shell and trim skirt in off-white

Specifications

• Power Requirements: Less than 71mA @ 24VDC
• Operating Temperature: 32° F to 120° F
• Anechoic chamber tested @30 V 102 dba
• UL reverberant room tested @30 V 88 dba

MODEL

• 1910S-1: Electronic Horn with Strobe, 24VDC

DIMENSIONS

• 4-3/4 inches W x 5-1/2 inches H
