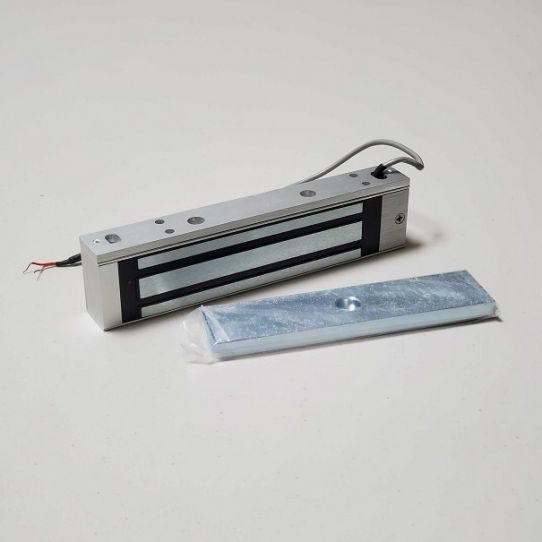

Rosslare Security, LK-M03L Magnetic Lock for Cabinets, 300 LBS

Product Overview

The LKM03L is a surface mounted magnetic lock series with 300 lbs holding force. LKM03L has dual voltage (12 or 24 VDC) and low current consumption with anodized aluminum housing.

LKM03L has a built-in voltage spike suppressor and no residual magnetism.

Different types of bracket and housing are available to fit various mounting conditions.

Features

• 300lbs holding force
• Small profile for cabinets
• 12/24 VDC input voltage (jumper selectable)
• UL Listed

Model

• LK-M03L - Magnetic Cabinet lock, 300lbs holding force (includes magnetic lock, armature plate, hardware pack and template)

Specification

• Input: 360/180 mA @ 12/24VDC

Dimensions

• Magnetic Lock: 6.54 inches L x 1.52 inches H x 0.85 inches D (166 mm x 38.6 mm x 21.5 mm)
• Armature Plate: 5.08 inches L x 1.24 inches H x 0.30 inches D (129 mm x 31.5 mm x 7.5 mm)

Specifications

• Model: LK-M03L Magnetic Cabinet Lock
• Manufacturer: Rosslare
• Holding Force: 300 lbs
• Voltage: 12 VDC or 24 VDC (jumper selectable)
• Current Draw: 360 mA at 12 VDC; 180 mA at 24 VDC
• Magnetic Lock Size: 6.54 inches L x 1.52 inches H x 0.85 inch D (166 mm x 38.6 mm x 21.5 mm)
• Armature Plate Size: 5.08 inches L x 1.24 inches H x 0.30 inch D (129 mm x 31.5 mm x 7.5 mm)
• Housing: Anodized aluminum
• Use: Interior use; small cabinets
• Listing: UL Listed
• Warranty: 1 year
