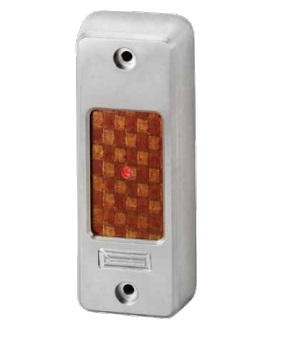

P-453-HA Gibraltar Bullet Resistant Proximity Reader, Narrow

Product Overview

Gibraltar vandal-resistant readers are designed to thrive in the most demanding access control applications.

For superior durability, Gibraltar readers combine the power of Farpointe Pyramid Series Proximity® 125-kHz proximity technology with a virtually indestructible exterior. Each Gibraltar reader is milled from a solid block of stainless steel and reinforced with a bullet-resistant Shot Blocker™ insert. Additionally, the reader ships standard with tamperproof screws.

Installation examples may include schools, correctional facilities, housing authorities, and sites where heavy equipment is operated

Standard Features

• Narrow mullion mount
• 26-bit Wiegand data output
• Built-in transceiver antenna, 125KHZ
• Built-in Bi-color LED and buzzer
• Waterproof (IP67)
• Limited lifetime warranty

Model

• P-453, P453, P-453-H, P453H, P453HA, P-453-HA

HID®

HID® is a Registered Trademark of HID Global Corporation

Specifications

• Model: P-453-HA Gibraltar Bullet Resistant Proximity Reader (narrow)
• Manufacturer: Farpointe Data
• Frequency: 125 kHz
• Card Format: HID 26-bit (H10301); also compatible with AWID and Farpointe Pyramid series cards and tags
• Output: 26-bit Wiegand
• Read Range: Up to 1 inch (25 mm)
• Current: 30 mA typical; 75 mA peak at 12 VDC
• Operating Temperature: -40° F to 149° F
• Dimensions: 2 inches W x 5.25 inches H x 1 inch D (51 mm x 133 mm x 25 mm)
• Protection: IP67
• Mount: Narrow mullion mount
• Finish: Stainless steel
• Features: Bi-color LED and buzzer; tamperproof screws
• Warranty: Limited lifetime
• Construction: Milled stainless steel with bullet-resistant Shot Blocker insert
