MCK-6 Mortise Keyswitch, Gang, Green & Red LED
Processing...

MCK-6 Mortise Keyswitch, Gang, Green & Red LED

$99.45 $117.00

Overview

Alarm Controls Corporation Mortise Cylinder Keyswitch model MCK-6 This keyswitch features a standard single gang face plate with Green & Red LED and accepts standard 1 1/8 inch mortise cylinder with 1 inch cam

  • Standard Single Gang 430 Stainless steel face plate
  • More Info +


    Select Model:
    Key Cylinder:
    Options

    Qty

    Product Details

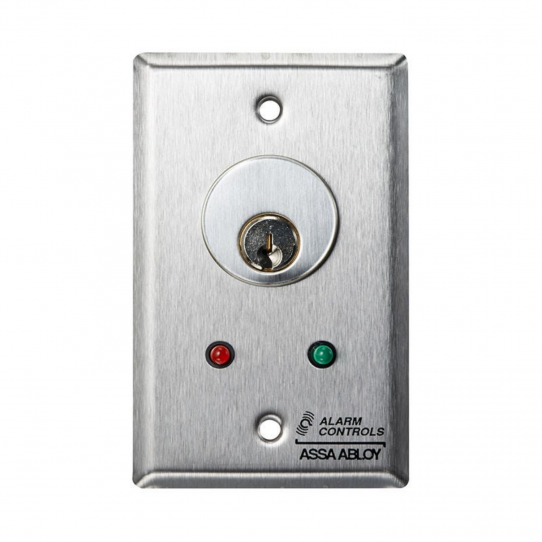

    MCK-6 Mortise Cylinder Keyswitch, Single gang

    Green and Red LED

    Alarm Controls Corporation Mortise Cylinder Keyswitch model MCK-6. This keyswitch features a standard single gang face plate with a Green & Red LED and accepts standard 1 1/8 inch mortise cylinder with 1 inch cam

    Product Models

    • MCK-6: S.P.D.T. (Single Pull Double Throw), 4amp, Momentary Action Switch
    • MCK-6-2: S.P.D.T. (Single Pull Double Throw), 4amp, Alternate Action Switch
    • MCK-6-3: D.P.D.T. (Double Pull Double Throw), 4amp, Momentary Action Switch
    • MCK-6-4: Double.P.D.T. (Single Pull Double Throw), 4amp, Alternate Action Switch
    • MCK-6-5: Pneumatic Time Delay Switch

    Product Features

    • Standard single gang 430 Stainless steel face plate
    • Green LEd operates on 12V or 24V DC
    • 1 1/2 inch depth behind face plate
    • 8 inch colored leads Switch Termination
    • Contact rating of 4amp @ 28 VDC
    • Tamper-proof and slotted head mounting screws
    • Accepts standard 1 1/8 inch mortise cylinder with 1 inch cam

    Note: Keyswitch only, Mortise Cylinder not included.

    Maglocks.com Rating
    Best
    Manufacturer
    Alarm Controls
    Manufacturer Warranty
    2 Year
    Model Number
    MCK-6
    Mount
    Single Gang
    Power Requirements
    24VDC/12VDC
    Switch Type
    S.P.D.T. (Single Pole Double Throw),D.P.D.T. (Double Pole Double Throw),Momentary Action,Alternate Action,Pneumatic Time Delay
    Type
    Basic
