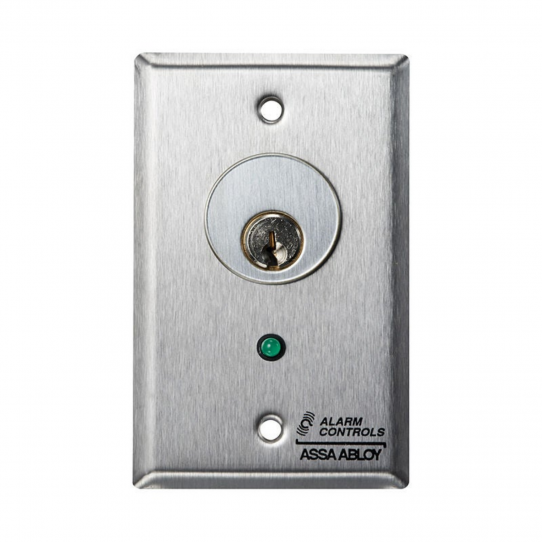

MCK-5 Mortise Cylinder Keyswitch, Gang, Green LED

Name: MCK-5 Mortise Cylinder Keyswitch, Gang, Green LED
Brand: maglocks
SKU: MCK-5
Price: 122.3 USD
Availability: InStock

$122.30 ~~$143.88~~

Alarm Controls Corporation Mortise Cylinder Keyswitch model MCK-5 This keyswitch features a standard single gang face plate with Green LED and accepts standard 1 1/8 inch mortise cylinder with 1 inch cam

Standard Single Gang 430 Stainless steel face plate

Select Model: MCK-5: S.P.D.T. (Single Pole Double Throw), 4 amp, Momentary Action Switch +$0.00 MCK-5-2: S.P.D.T. (Single Pole Double Throw), 4 amp, Alternate Action Switch +$8.00 MCK-5-3: D.P.D.T. (Double Pole Double Throw), 4 amp, Momentary Action Switch +$14.00 MCK-5-4: D.P.D.T. (Double Pole Double Throw), 4 amp, Alternate Action Switch +$22.00 MCK-5-5: Pneumatic Time Delay Switch +$263.00

Add Mortise Cylinder, includes 2 Keys: Mortise Cylinder +$61.00 Mortise Cylinder (keyed alike, available when ordering 2 or more keyswitches) +$61.00

Options:

WP: Weather-proof cover and surface mount back box +$187.00

Qty

MCK-5 Mortise Cylinder Keyswitch, Single gang, Green LED

Alarm Controls Corporation Mortise Cylinder Keyswitch model MCK-5. This keyswitch features a standard single gang face plate with a Green LED and accepts standard 1 1/8 inch mortise cylinder with 1 inch cam

Specifications

Models: MCK-5 (SPDT momentary); MCK-5-2 (SPDT alternate action); MCK-5-3 (DPDT momentary); MCK-5-4 (DPDT alternate action); MCK-5-5 (pneumatic time delay switch)
Contact Rating: 4 A at 28 VDC
Face Plate: Standard single gang 430 stainless steel face plate
Depth Behind Plate: 1 1/2 inch
Leads: 8 inch colored leads
LED: Green LED, operates on 12 or 24 VDC
Cylinder: Accepts a standard 1 1/8 inch mortise cylinder with 1 inch cam (cylinder not included)
Mounting Screws: Tamper-proof and slotted head

Note: Keyswitch only, Mortise Cylinder not included.

Also Known As:

MCK5, AC-MCK5, HES-MCK5

Manufacturer:

Alarm Controls

Manufacturer Warranty:

2 Year

Model Number:

MCK-5

Mount:

Single Gang

Power Requirements:

24VDC/12VDC

Switch Type:

S.P.D.T. (Single Pole Double Throw),D.P.D.T. (Double Pole Double Throw),Momentary Action,Alternate Action,Pneumatic Time Delay

Type:

Basic

UPC Code:

604840990059

Datasheet PDF

Installation PDF
