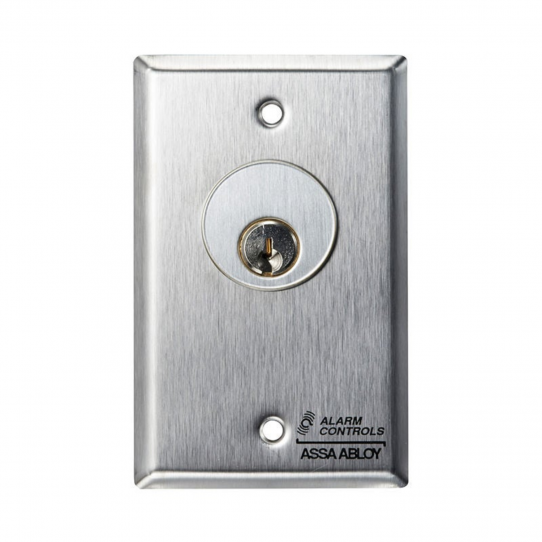

MCK-4 Mortise Cylinder Keyswitch, Single Gang

$120.44 $141.70

Alarm Controls Corporation Mortise Cylinder Keyswitch model MCK-4 This keyswitch features a standard single gang face plate and accepts standard 1 1/8 inch mortise cylinder with 1 inch cam

  • Single Gang 430 Stainless steel face plate
    • Read More
    Select Model:
    Add Mortise Cylinder, includes 2 Keys:

    Options:

    MCK-4 Mortise Cylinder Keyswitch

    Alarm Controls Corporation Mortise Cylinder Keyswitch model MCK-4. This keyswitch features a standard single gang face plate and accepts standard 1 1/8 inch mortise cylinder with 1 inch cam

    Product Models

    • MCK-4: S.P.D.T. (Single Pole Double Throw), 4amp, Momentary Action Switch
    • MCK-4-2: S.P.D.T. (Single Pole Double Throw), 4amp, Alternate Action Switch
    • MCK-4-3: D.P.D.T. (Double Pole Double Throw), 4amp, Momentary Action Switch
    • MCK-4-4: Double.P.D.T. (Single Pole Double Throw), 4amp, Alternate Action Switch
    • MCK-4-5: Pneumatic Time Delay Switch

    Product Features

    • Standard single gang 430 Stainless steel face plate
    • 1 1/2 inch depth behind face plate
    • 8 inch colored leads Switch Termination
    • Contact rating of 4 Amperes @ 28 VDC
    • Tamper-proof and slotted head mounting screws
    • Accepts standard 1 1/8 inch mortise cylinder with 1 inch cam

    Note: Keyswitch only, Mortise Cylinder not included.

    Also Known As:

    MCK4, AC-MCK4, HES-MCK4

    Manufacturer:

    Alarm Controls

    Manufacturer Warranty:

    2 Year

    Model Number:

    MCK-4

    Mount:

    Single Gang

    Power Requirements:

    24VDC/12VDC

    Switch Type:

    S.P.D.T. (Single Pole Double Throw),D.P.D.T. (Double Pole Double Throw),Momentary Action,Alternate Action,Pneumatic Time Delay

    Type:

    Basic

    UPC Code:

    604840990042
    1 Question asked on MCK-4 Mortise Cylinder Keyswitch, Single Gang •
    Ask a Question
    Q Blair Ashley • 06/08/2022, 1:12:50 PM I’m looking for a key switch that will turn the door magnets on and off. I might need to turn the magnets off for a while so I need the key to stay in the opposition until I turn it back on. Can you help me with which one I need exactly thank you
    A 06/09/2022, 10:31:38 AM For a switch contact that would stay in a maintained position until flipped back, you would need a “Alternate Action” key switch like the MCK-4-2 or the MCK-4-4. Operation: When you put your key in and turn it would toggle the switch contact. When you put your key back in and turn it again it would re-toggle the switch back to it's normal position. To go over this operation in further detail please give us a call at 1-866-500-5625
