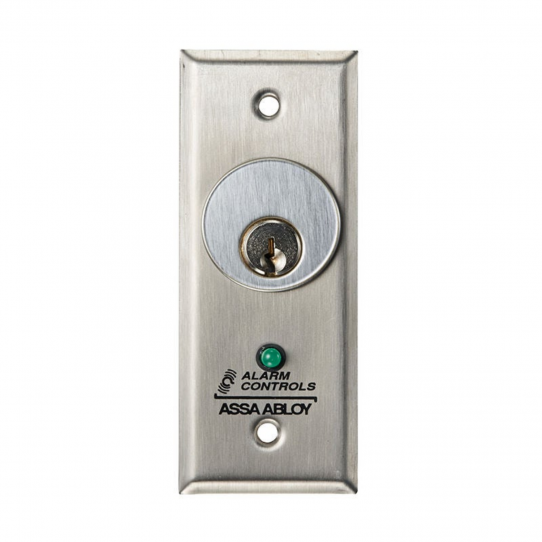

MCK-2 Mortise Cylinder Keyswitch, Narrow, Green LED

Name: MCK-2 Mortise Cylinder Keyswitch, Narrow, Green LED
Brand: maglocks
SKU: MCK-2
Price: 119.52 USD
Availability: InStock

$119.52 ~~$140.61~~

Alarm Controls Corporation Mortise Cylinder Keyswitch model MCK-2. This keyswitch features a narrow face plate (1 3/4 inch) with a green LED and accepts standard 1 1/8 inch mortise cylinder with 1 inch cam

1 3/4 inch narrow 430 Stainless steel face plate

Green LED operates on 12V or 24V DC

Select Model: MCK-2: S.P.D.T (Single Pole Double Throw), 4 amp, Momentary Action Switch +$0.00 MCK-2-2: S.P.D.T (Single Pole Double Throw), 4 amp, Alternate Action Switch +$6.00 MCK-2-3: D.P.D.T (Double Pole Double Throw), 4 amp, Momentary Action Switch +$11.00 MCK-2-4: D.P.D.T (Double Pole Double Throw), 4 amp, Alternate Action Switch +$19.00

Add Mortise Cylinder, includes 2 Keys: Mortise Cylinder +$61.00 Mortise Cylinder (keyed alike, available when ordering 2 or more keyswitches) +$61.00

Qty

MCK-2 Mortise Cylinder Keyswitch with Green LED

Specifications

Models: MCK-2 (SPDT momentary); MCK-2-2 (SPDT alternate action); MCK-2-3 (DPDT momentary); MCK-2-4 (DPDT alternate action)
Contact Rating: 4 A at 28 VDC
Face Plate: 1 3/4 inch narrow 430 stainless steel face plate
Depth Behind Plate: 1 1/2 inch
Leads: 8 inch colored leads
LED: Green LED, operates on 12 or 24 VDC
Cylinder: Accepts a standard 1 1/8 inch mortise cylinder with 1 inch cam (cylinder not included)
Mounting Screws: Tamper-proof and slotted head

Note: Keyswitch only, Mortise Cylinder not included.

Also Known As:

MCK2, AC-MCK2, HES-MCK2

Manufacturer:

Alarm Controls

Manufacturer Warranty:

2 Year

Model Number:

MCK-2

Mount:

Narrow

Power Requirements:

24VDC/12VDC

Switch Type:

S.P.D.T. (Single Pole Double Throw),D.P.D.T. (Double Pole Double Throw),Momentary Action,Alternate Action,Pneumatic Time Delay

Type:

Basic

UPC Code:

604840990028
