MCK-1 Mortise Cylinder Keyswitch, Narrow

$78.20 $92.00

Overview

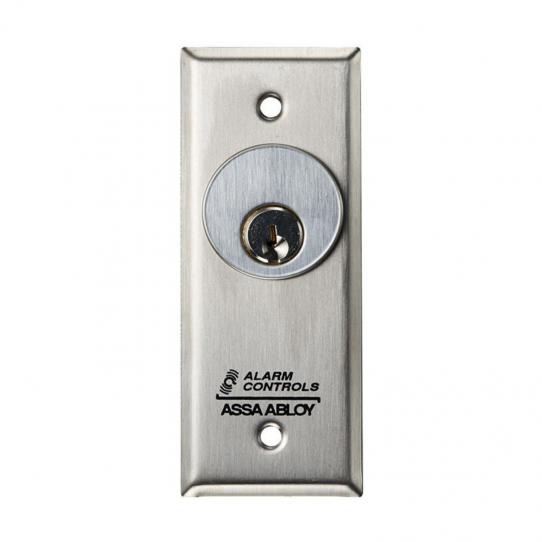

MCK-1 Mortise Cylinder Keyswitch

Alarm Controls Corporation Mortise Cylinder Keyswitch model MCK-1. This keyswitch features a narrow face plate (1 3/4 inch) and accepts standard 1 1/8 inch mortise cylinder with 1 inch cam

  • 1 3/4 inch narrow 302 Stainless steel face plate
  • More Info +


    Select Model:

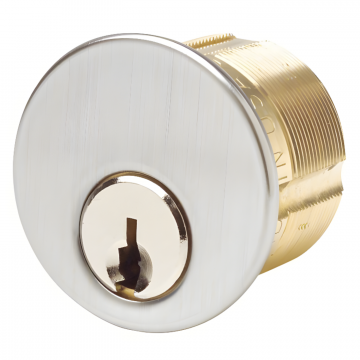

    Add Mortise Cylinder, Includes 2 Keys:

    Qty

    Product Details

    MCK-1 Mortise Cylinder Keyswitch

    Alarm Controls Corporation Mortise Cylinder Keyswitch model MCK-1. This keyswitch features a narrow face plate (1 3/4 inch) and accepts standard 1 1/8 inch mortise cylinder with 1 inch cam

    Product Models

    MCK-1: S.P.D.T. (Single Pole Double Throw), 4amp, Momentary Action Switch
    MCK-1-2: S.P.D.T. (Single Pole Double Throw), 4amp, Alternate Action Switch
    MCK-1-3: D.P.D.T. (Double Pole Double Throw), 4amp, Momentary Action Switch
    MCK-1-4: Double.P.D.T. (Single Pole Double Throw), 4amp, Alternate Action Switch
    MCK-1-5: Pneumatic Time Delay Switch

    Product Features

  • 1 3/4 inch narrow 430 Stainless steel face plate
  • 1 1/2 inch depth behind face plate
  • 8 inch colored leads Switch Termination
  • Contact rating of 4 Amperes @ 28 VDC
  • Tamper-proof and slotted head mounting screws
  • Accepts standard 1 1/8 inch mortise cylinder with 1 inch cam
  • Note: Keyswitch only, Mortise Cylinder not included.

    Maglocks.com Rating
    Good
    Manufacturer
    Alarm Controls
    Manufacturer Warranty
    2 Year
    Model Number
    MCK-1
    Mount
    Narrow
    Power Requirements
    24VDC/12VDC
    Switch Type
    S.P.D.T. (Single Pole Double Throw),D.P.D.T. (Double Pole Double Throw),Momentary Action,Alternate Action,Pneumatic Time Delay
    Type
    Basic
