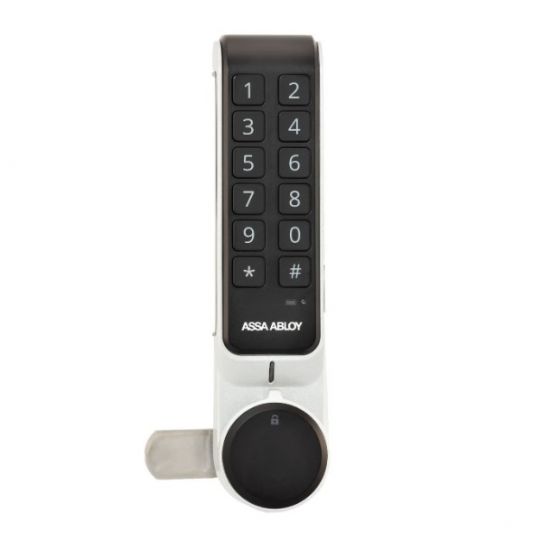

HES, KP20 Battery Operated Keypad for Cabinet Doors

Product Overview

The battery powered KP20 Cabinet Lock is the flexible, low cost cabinet locking solution for low to medium security applications with 75 lbs of holding force.

Applications

• Retail and Museum: Display cases, cabinets
• Laboratory, Healthcare, Pharmaceutical: Files, cabinets, lockers and carts
• Businesses and Schools: Office, kitchen and bathroom cabinets, file cabinets, desk drawers, lockers and carts
• Industrial/Manufacturing: Metal and wood cabinetry for tools, supplies, inventory, hazardous material storage
• Residential: Cabinetry, closets, desks and files
• Law Enforcement: Evidence lockers, cabinets, desk drawers
• Rack / Cabinets: Servers, LAN, HVAC, communications
• Electrical/Equipment Enclosures: Hinged electrical cabinets
• Security Equipment: Key control cabinets, alarm and power supply cabinets
• Console Cabinets: Security/CCTV, guard console station/cabinet

Features

• 12 button keypad

• Standard-alone access control
• Public (one-time) or private (continous) mode configuration options
• Supports (1) Master Code, 4 - 12 digits
• Supports (1) User Code, 4 - 12 digits
• LEDs indicate valid/invalid access
• Aluminum die-cast construction
• Non-handed
• Installs on wood or metal cabinet drawers or doors, 1.5 to 22.2mm thick
• Micro USB for emegency override upon loss of power

Model

• KP20 -  Battery Powered Cabinet Lock with Keypad

Specifications

• Door Thickness: 1/16 inch up to 7/8 inch thick
• Cam mounting: 5/16 inch square spindle
• Hole required for spindle: 11/16 inch diameter
• Battery Powered : 3 x AAA Batteries
• Battery Life: 30,000 cycles *estimated
• Front Assembly Dimensions: 6.02 L x 1.38 W x 1.10 D inches
