FPR-1081 Surface Mount Fingerprint & Prox Reader, ACP-N

Product Overview

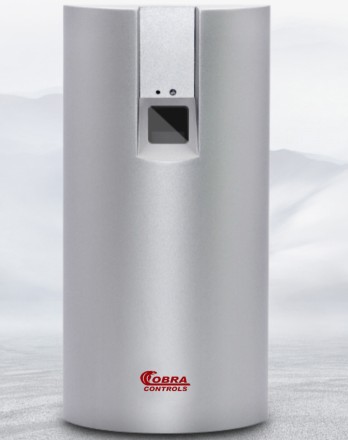

FPR-1081 Surface Mount Fingerprint & Mifare Prox Reader

Requires direct connection to Reader Input on Cobra Controls ACP-N series panels and Ethernet connection to network.

*Cobra Panels sold separately (available here)

Technical Specifications

• User Capacity: 1000 fingerprints/ 20,000 cards
• Card type: Mifare 13.56MHZ 1K
• Reading distance: 1-3cm
• Operating Temp: -4° F to 122° F
• Voltage: 12VDC
• Static current: 150ma
• Max current: 300ma
• Interface: Wiegand 26
• Dimensions: 7-1/8 inches L x 3-9/16 inches W x 1-3/4 inches D, (179 L x 89 W x 45 D mm)

**Reader does not include on-board relay**

**For use with Cobra Controls ACP-N series panels & software ONLY**

Specifications

• Model: FPR-1081 Surface Mount Fingerprint and Prox Reader
• Manufacturer: Cobra Controls
• Credential: Fingerprint and Mifare 13.56 MHz 1K card
• User Capacity: 1,000 fingerprints; 20,000 cards
• Output: 26-bit Wiegand
• Reading Distance: 1 to 3 cm
• Voltage: 12 VDC
• Current: 150 mA static; 300 mA maximum
• Operating Temperature: -4° F to 122° F
• Dimensions: 7-1/8 inches L x 3-9/16 inches W x 1-3/4 inches D (179 mm x 89 mm x 45 mm)
• Compatibility: Cobra Controls ACP-N series panels and software only; no on-board relay
• Use: Interior use
