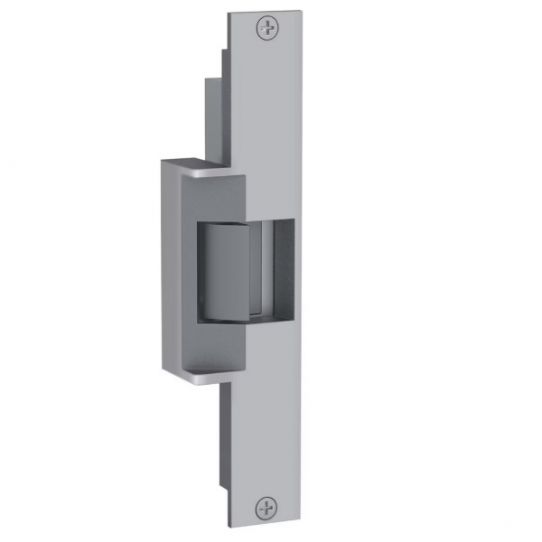

Folger Adam 310-2 Electric Strike, Fire Rated Grade 1
Processing...

25% off MSRP

Folger Adam 310-2 Electric Strike, Fire Rated Grade 1

$628.50 $838.00

Overview

The 310 Series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes.

310-2:  For a 1/2” or 5/8” throw latchbolt (without deadbolt) on single and pairs of doors

• 1/2” keeper standard

More Info +


Select Voltage:
Select Function:
Select Faceplate Finish:
Options

Qty

Product Details

Product Overview

Industrial grade electric strikes that offer extra heavy duty durability and tamper resistance.

Standard Features

  • Tamper resistant, heavy-duty construction
  • Constructed entirely of stainless steel for strength and corrosion resistance
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Endurance rating 500,000 cycles
  • Horizontally adjustable keeper to allow for door and frame misalignment
  • 1/2 inch keeper depth (310-2)
  • Non-handed
  • Fail Secure (standard)
  • Plug-in connector
  • Five year limited warranty

Specifications

  • UL 10C fire-rated, 3 hour single door (fail secure only)
  • UL 10C fire-rated, 3 hour double door (fail secure only)
  • CAN4-S104 (ULC-S104) fire door conformant
  • UL1034, burglary-resistant listed
  • ANSI/BHMA A156.31, Grade 1
  • DOD approved
  • New York City accepted
  • NFPA-252 fire door conformant
  • ASTM-E152 fire door conformant

Electrical Specifications

  • .51amps @ 12VDC continuous duty
  • .25amps @ 24VDC continuous duty

Model

  • 310-2-12D
    310-2-24D
  • 310-2-F-12D (Fail Safe)
  • 310-2-F-24D (Fail Safe)
  • 310-2-12D-LCBMA
  • 310-2-24D-LCBMA
  • 310-2-F-12D-LCBMA (Fail Safe)
  • 310-2-F-24D-LCBMA (Fail Safe)

Options

  • LCBMA - Detects position of latchbolt in pocket
Also Known As
HAN100310212D630, 310212D630, F1-030033513
For Use With
Cylindrical Locksets Mortise Locksets w/o deadbolt
Grade
Grade 1
Manufacturer
Folger Adam
Manufacturer Warranty
5 Year
Model Number
310-2
Power Requirements
24VDC/12VDC
Status Monitor
Optional
UPC Code
740090045023
