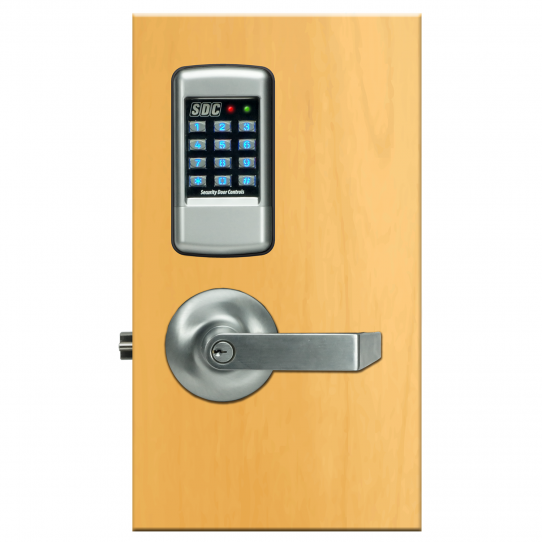

EntryCheck E75 Standalone Keypad/Prox, battery power

$522.20 $746.00

Overview

The SDC E75 EntryCheck® is a standalone electronic battery powered solution, providing controlled access for basic and multi-level high security requirements. The E75 lockset is keypad programmable, and combines multiple access technology with efficient motorized locksets. E75 series can be retrofitted to existing prep for cylindrical locks.

Features:

  • Keypad Programmable
  • 3,000 users, 32 temporary users
  • 3 Passage Mode Options
  • Mechanical Key Override
  • Battery Powered (4AA)
  • Weather and Vandal Resistant
  • 2-3/4 inch backset latch
  • Heavy Duty ANSI Grade 1

Easy installation in a standard 2-1/8 inch door prep!!

More Info +


Select Model:
Specify Keypad Finish:
Specify Lever Handle:
Specify Lever Lockset Finish:

Qty

Product Details

Product Overview

The SDC E75 EntryCheck is a standalone electronic battery powered solution, providing controlled access for basic and multi-level high security requirements. The E75 lockset is keypad programmable, and combines multiple access technology with efficient motorized locksets. E75 series can be retrofitted to existing prep for cylindrical locks.

Features

  • Keypad Programmable
  • 3,000 Users, 32 Temporary Users
  • 4 to 6 Digit PIN Codes
  • 3 Passage Mode Option
  • 32 Access Groups, Schedules
  • 32 Holidays
  • 4 Authority Levels
  • Keypad Tamper Lockout
  • Mechanical Key Override
  • Battery Powered (4AA)
  • Blue Backlit Cast Metal Keys
  • Weather & Vandal Resistant
  • Retrofit Existing Lock Door Prep
  • Motorized SDC Cylindrical Lockset
  • Heavy Duty ANSI Grade 1
  • Vandal Resistant Lever Handles

Product Specifications

  • Handing: Non-handed
  • Door Thickness: 1-3/4 inch to 2-1/8 inch
  • Backset: 2-3/4 inch
  • Strike: 4-7/8 inch ANSI A115.2
  • Key Override
  • Lock Body: Grade 1
  • Power: 4 Size AA Batteries (Alkaline Only) or External 12VDC @ 30mA
  • Inputs: 1 Request to Exit, 1 Door Position Switch
  • Output: SPDT Contacts 1A @ 30VDC Relay

Models

  • E75K - Digital Keypad only
  • E75P - Digital Keypad with Prox Reader (uses HID (H10301) format cards/tags) *cards/tags not included
  • E75PS -Digital Keypad with Prox Reader and Software, cylindrical lockset

Made in the USA
Also Known As
SZ-E75K, SDC-E75K
Finish
(selectable)
Manufacturer
SDC Security
Manufacturer Warranty
2 Year
Model Number
E75
Power Requirements
Battery
Status Monitor
n/a
UPC Code
712905224121
