E307C-LH Touchscreen Keypad and Card Lock by elocksolutions *DISCONTINUED*
Processing...

E307C-LH Touchscreen Keypad and Card Lock by elocksolutions *DISCONTINUED*

$175.00

Overview

**Discontinued Item, see "Related Products" below**

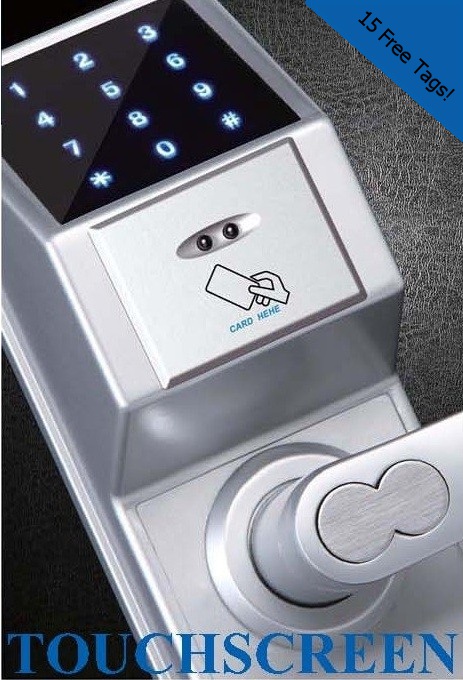

The E307C incorporates the very latest in Touch Screen and RF technology with safety, fashion and convenient features all rolled into one well designed lock. The E307C is suitable for home and office use. This do-it-yourself (DIY) lock needs no software to operate, no wiring to connect, just replace your existing cylinder lock with the E307C, program a code or a card into the lock and you are ready to go!

The lock is perfect for wine cellars, utility rooms, storage rooms, personal offices, and other low traffic applications.

More Info +


Qty

Product Details

**Discontinued Item, see "Related Products" below**


The E307C incorporates Touch Screen and RF technology with safety, fashion and convenient features all rolled into one well designed lock. The E307C is suitable for home and office use. This do-it-yourself (DIY) lock needs no software to operate, no wiring to connect, just replace your existing cylinder lock with the E307C, program a code or a card into the lock and you are ready to go! The lock is perfect for wine cellars, utility rooms, storage rooms, personal offices, and other low traffic applications.

Multiple Functional Set-ups

  • Electronic Forced Locked Function Under this mode, card and password users are prohibited from opening the lock. Only the Master Code and/or the mechanical override key will operate the lock
  • Passage Function - Under this mode, touch the touchpad screen lightly will unlock the door providing easy access for all users.
  • Base Function - Under this mode, Lock can be accessed by RFID card, passcode, or the mechanical override key.

Features

  • Three methods of entry. RFID card/tag, PIN code or Mechanical Key override.
  • The lock can save 78 password users, 30 card users and 600 records.
  • Easy installation for standard cylindrical door hole (2-1/8").
  • Includes 2 deadlatches to fit 2-3/8 inch and 2-3/4 inch backsets.
  • Use 4 AA Alkaline batteries for power supply (not included). The lock is also fitted with a 9V battery connection for emergency access.
  • Password and card users can be deleted individually for easy management.
  • US Standard Cylinder. Easy replacement if mechanical key is lost.

Optional Audit Trail Function

Using the optional E307-AT (sold separately) hand held audit terminal you can plug directly into the lock and view the last 600 records from the LCD screen. Each entry record will include date, time and user number. Data can also be transferred to a PC using the software included with the E307-AT to easily export record logs.

Format
26-bit Cobra
Manufacturer
elocksolutions
Manufacturer Warranty
2 Year
Model Number
E307C
Operation Keypad
PIN/Prox card
Power Requirements
Battery
1 Question asked on E307C-LH Touchscreen Keypad and Card Lock by elocksolutions *DISCONTINUED*



Q Justin Folkedahl • 10/17/2018, 12:50:50 PM I was wondering if I could get a pdf of the manual for the handle. I need to add some key cards but i can't find any of my old user guides.
A 12/03/2018, 11:50:55 AM The Quick Start Guide, Programming Guide and Audit Guide are available in the Documentation section.
