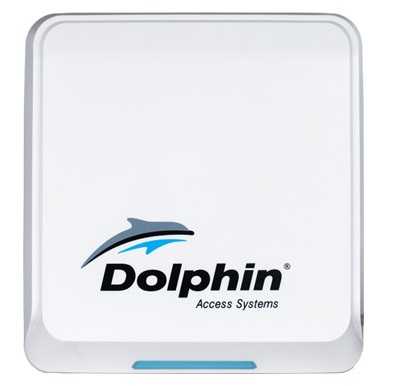

Dolphin, DOLCWIUHFP-910 Mini UHF Long Range Reader

$2,315.25

Overview

UHF Long Range Solution, great for automated gates, parking garages and vehicle access.

Features:

Up to 30 feet Read Range
26-bit Wiegand Output
Waterproof, IP 66 rated

*Must be wired to a controller that can accept a 26-bit Wiegand input, no built in relay.

UHF Long Range Solution, great for automated gates, parking garages and vehicle access.

Features

Up to 30 feet Read Range
26-bit Wiegand Output
Easy Installation
Waterproof, IP 66 Rated

Specifications

Proximity Card Reader 900MHz
Read Range: 30 Feet Max
Temperate Rating: 14°F - 185°F
Power Consumption:

Idle Mode - 0.3 Amp at 12VDC
Active Mode - 1.0 Amp at 12VDC

User Capacity Wiegand
IP Rating IP66
Relay Wiegand
Temperature Rating 14°F - 185°F
Proximity Card Reader 900MHz
Operating Voltage 10-28VDC

Dimensions

Overall dimensions: 8.5 inches L x 8.8 inches W x 2 inches D

Available Accessories

ISO Prox Card
Dual Format Card (HID and 900Mhz)
Card Holder
Headlight Tag
Hang Tag
License Plate Tag

Also Known As

DOLCWIUHFP910, DOLCWIUHFPMINI

Finish

White

Manufacturer

Transmitter Solutions

Model Number

DOLCWIUHFP-910

Power Requirements

12VDC

Datasheet PDF

Wiring Diagram PDF

Wiring Diagram (with Wiegand filter) PDF

2 Questions asked on Dolphin, DOLCWIUHFP-910 Mini UHF Long Range Reader • Ask a Question

Q Justin Brown • 06/27/2023, 8:09:14 AM Will any 26 bit tag work with this system or does it have to be your tags?

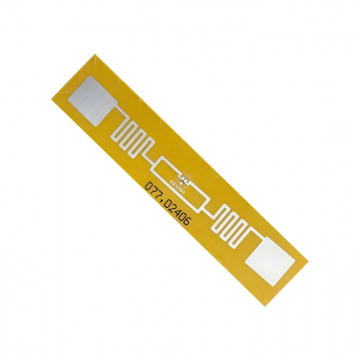

A 07/05/2023, 3:46:02 PM This UHF long range reader is designed to work specifically with the "DOLPHIN UHF WINDSHIELD STICKERS" found under the Related Products section below. These are 900mhz UHF stickers and are much different vs the traditional 26-bit cards/keytags that operate on 125khz. To go over this product in further detail or to get a complete quote started please give us a call direct at 1-866-500-5625

Q Charlie Morris • 11/22/2023, 3:51:01 PM Will this product interface with DMP products specially a DMP 734 module?

A 11/28/2023, 10:38:05 AM The DOLCWIUHFP-910 long range UHF reader uses a 26-bit Wiegand output (similar to most standard credential readers) to send data to an access control panel. Per the manufacture datasheet for the DMP 734 Module "The 734 Series supports virtually any 26-40 bit Wiegand output credential reader as well as OSDP readers. This includes 125 kHz prox, 13.56 MHz smartcards, biometric scanners and Bluetooth mobile credential readers." Based on this information it sounds like it should work but I would double-check this with DMP to ensure your specific module is compatible. To go over any additional questions regarding this UHF reader please give us a call direct at 1-866-500-5625
