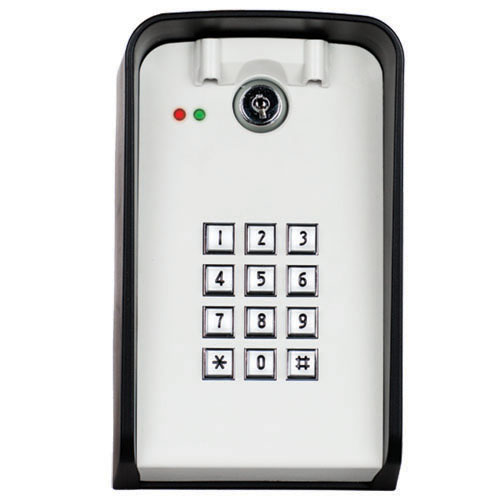

DOL1000-MF Wireless keypad, 1000 code

DOL1000-MF Wireless keypad, 1000 code



Designed to trigger electric gates, garage doors, automatic parking gates or electronic locks from a distance of over 300ft!

Battery powered operation eliminates costly wire runs and allows for simplifed installation.


  • (wireless transmitter not inlcuded, sold separately)
  • Wireless or hardwire
  • 4 AA batteries or 12/24 AC/DC
  • 1000 user codes
  • No exterior antenna needed
  • Weather resistant
  • Indoor/outdoor

Please give us a call with any questions regarding the configuration of this keypad for wireless operation, 1-866-500-5625

More Info +



Product Details

Product Overview

The DOL1000-MF is a versatile keypad that has the option of running wirelessly. The DOL1000-MFcan work with 6 volts of battery power or 6-24 volts of AC/DC. This keypad can be wired with multiplewireless transmitters. DOL1000-MF can store up to 1000 access codes.

*wireless transmitter sold separately


  • IP Rating: IP64
  • Temperature Rating: -40C to 70C / -40F to 158F
  • Size: 7 1/2 inch x 7 3/4 inch x 3 5/8 inch
  • Weight: 1 ¾ lbs.
  • Housing: ABS
  • Face Plate Material: ABS
  • Operating Voltage: 6-24 AC/DC
  • Output relays: 1A
Also Known As
DOL1000-MF, DOL1000MF
Transmitter Solutions
Manufacturer Warranty
2 Year
Model Number
Operation Keypad
PIN Only
Power Requirements
UPC Code
1 Question asked on DOL1000-MF Wireless keypad, 1000 code

Q Tammy Hodge • 08/21/2023, 5:00:42 PM Can this keypad replace a Millennium 950/951N 10 dip 300 mhz keypad?
A 08/21/2023, 5:08:20 PM This keypad will require a wireless transmitter (sold separately) to transmit a signal to a wireless receiver (sold separately). We have options for 433mhz transmitters & receivers or you would have to provide your own. For further assistance with this product please give us a call at 1-866-500-5625
