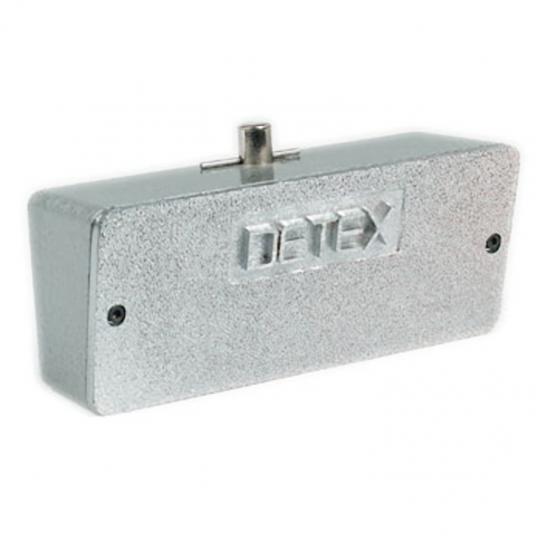

Detex DDH-2250 Double Door Holder

Detex DDH-2250 Double Door Holder

The DDH-2250 Double Door Holder is designed for use with Detex Exit Control Locks to provide locking of the inactive leaf on an outswinging double door. Release of the active leaf disengages the DDH-2250 allowing the inactive leaf to open freely.

Benefits

• Enables the Detex Exit Control Locks to be used with any wood, metal or glass double outswinging exit door.
• Flexibility for mounting on either the left or right door.
• Simple, easy operation - no mortise required.
• Pushing the exit control lock opens the active leaf and automatically disengages the DDH-2250, providing instant emergency exit with both doors.

Specifications

• Dimensions: 7 1/8 in long x 2 1/4 in deep x 2 7/8 in high
• Housing: cast zinc alloy, 3/16 in
• Locking bolt: case hardened steel
• Spring: stainless steel
• Handing: reversible for right or left hand doors; no mortise required
• Warranty: 3 year limited manufacturer's warranty
• Included: screws, Allen wrench, strike plate, door protection plate, templates

Features

• Interchangeable pin
• Stainless steel spring provides instant release of the lock bolt
