BO-6600-73MI circuit board for 6600-73MI Hotel Lock

$69.00

Overview

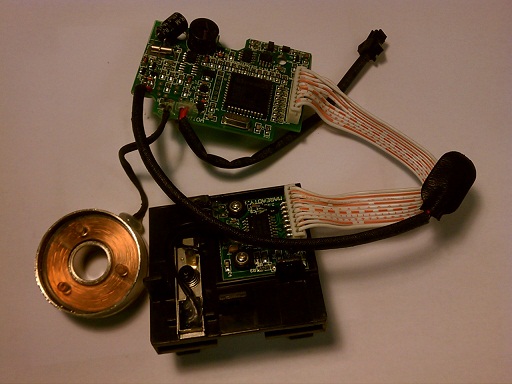

The board is an original equipment replacement circuit board for the 6600-73MI Smart and Magnetic card Hotel lock

* * Replacement Part * *

More Info +


Qty

Product Details

The board is an original equipment replacement circuit board for the 6600-73MI Smart  and Magnetic card Hotel lock

Specifications

  • Power: 6v (4 segments 1.5 voltage batteries)
  • Static Electric Current: IC touched card lock < 10μA IC touched card lock+electromagnetic lock < 10μA Reaction card lock < 50μA
  • Working Electric Current: 100-300mA
  • Keeping Record: 250pieces data can be reserved more than 10 years
  • Touched IC card: one hundred thousand (100,00) time use
  • Battery Life: 12 months in normal status
  • Open Time: 5 seconds
  • Insert Reliability: Tested continuously over 2,000 consecutive times without an error
  • Insert Guarantee: illegal card use will not alter performance
  • Low Voltage Warning: If the CPU working voltage is less than 4.5 V, it will alert “di di” tone with the red light flashing when opening door.
  • Capability Resists Static: >15000V
  • Relative Range(use): 20%-98%
  • Temperature Range(Using): -20?—+70?
  • Temperature Range(Storage): -25?—+85?
  • Maglocks.com Rating
    Better
    Manufacturer
    Digi Electronics
    Manufacturer Warranty
    1 Year
    Model Number
    BO-6600-73MI
