20% Off MSRP

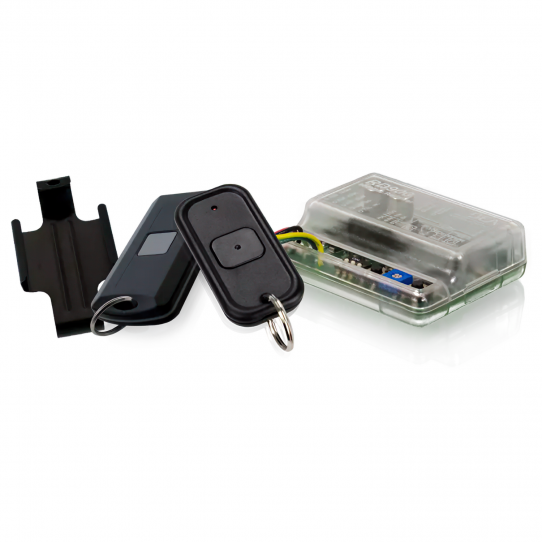

BEA, 10RD900 Digital Wireless Receiver Module, 900MHz
$65.42
$81.78
Overview
BEA’s 900 MHZ FAMILY 10RD900 compact receiver allows for wireless activation of any door control. FCC Part 15 certification ensures proper compliance with federal radio frequency regulations.
Typically used to control automatic doors and operators.
*note, wireless transmitters sold separately
Product Details
Product Overview
BEA’s 900 MHZ FAMILY compact transmitters and receiver allow wireless activation of any door control. FCC Part 15 certification ensures proper compliance with federal radio frequency regulations.
900 MHz wireless technology provides greater line-of-sight transmission distance than legacy wireless frequencies. It also provides better penetration of obstacles such as walls, partitions, doors or low-emissivity glass.
Typically used to control automatic doors and operators.
Standard Features
- Frequency: 908 - 918 MHz (Frequency Hopping)
- Radio Control Type: Digital
- Supply Voltage: 12 - 24 VAC/VDC
- Contact Rating: 1.0A @ 30 VDC
- Relay Type: SPDT (COM, NO, NC)
- Relay Modes: Pulse, Toggle, Timed (selectable)
- Transmitter Capacity: 75
- LED Indicators: Red, Blue, Tri-color
Compatible Transmitters (sold separately)

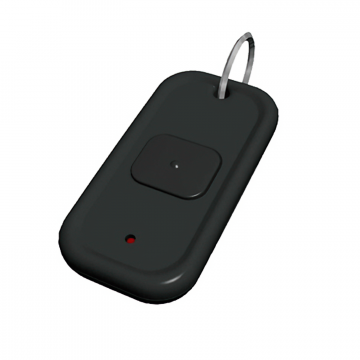

- 10TD900HH1 - handheld, 1-Button Transmitter

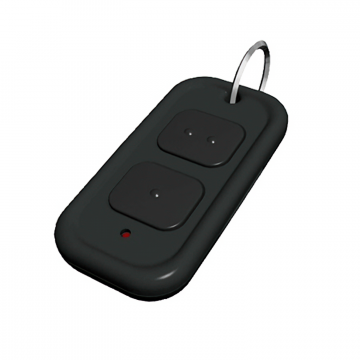

- 10TD900HH2 - handheld, 2-Button Transmitter

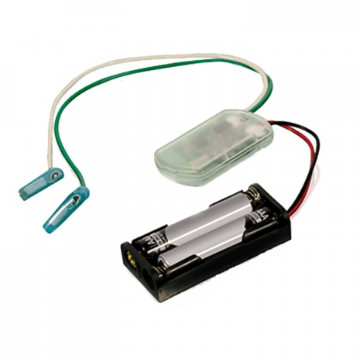

- 10TD900PB - hardwired retrofit kit for mechanical push-plates
