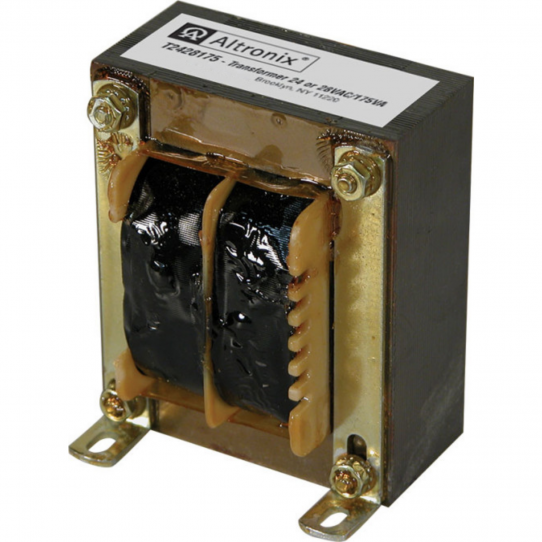

Altronix T2428175 AC 24VAC @ 7.25A or 28VAC @ 6.25A

Product Overview

T2428175 open frame transformer provides power for electronic power supplies and equipment including security, access control and surveillance devices.

Features and Specifications

Input: 115VAC 50/60 Hz, 1.6-amp

Output: 24VAC/175VA (7.25 amp) or 28VAC/185VA (6.25 amp)supply current

Electrical:

• Operating temperature: -20° C to 49° C ambient. 89.57 - 94.69BTU/Hr.
• System AC input VA requirement: 184VA.

Dimensions

• Dimensions (approximate): 3 inches W x 3.125 inches L x 3.75 inches H (76.2mm W x 79.375mm L x 95.25mm H)

Lifetime Warranty

Specifications

• Model: T2428175
• Also known as: AX-T2428175, ALT-T2428175, ALT100T2428175
• Manufacturer: Altronix
• Type: Open frame AC transformer
• Input: 115 VAC, 50/60 Hz, 1.6 A
• Output: 24 VAC / 175 VA (7.25 A) or 28 VAC / 185 VA (6.25 A)
• System AC input VA requirement: 184 VA
• Heat output: 89.57 to 94.69 BTU/hr
• Operating temperature: -20°C to 49°C ambient (-4°F to 120°F)
• Dimensions: 3 inches W x 3.125 inches L x 3.75 inches H (76.2 mm x 79.375 mm x 95.25 mm) (approximate)
• UPC: 782239950706
• Warranty: Lifetime
