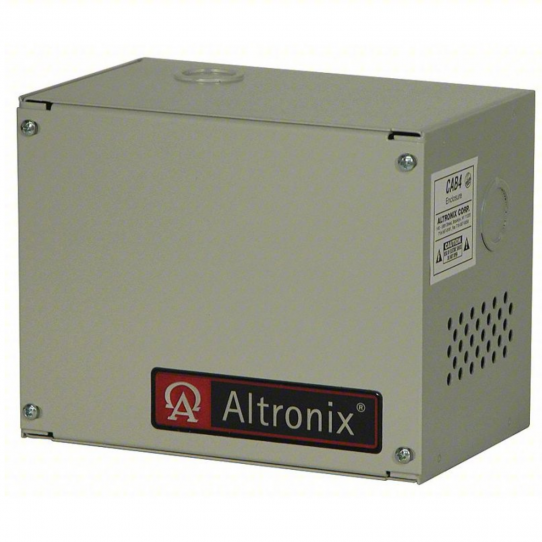

Altronix T2428100C AC Power, 24VAC @ 4A or 28VAC @ 3.5A

$119.49 $132.77

Overview

T2428100C AC power supply provides power for electronic power supplies and equipment, including security, access control and surveillance devices.

Key Features:
• 115VAC 50/60Hz, 0.95amp Input
• 24VAC/100VA (4 amp) or 28VAC/100VA (3.5 amp) Output
• Fused input protection
• Green grounding lead
• Lifetime Warranty

More Info +


Qty

Product Details

Product Overview

T2428100C AC power supply provides power for electronic power supplies and equipment, including security, access control and surveillance devices.

Features and Specifications

Input: 115VAC 50/60 Hz, 0.95 amp. Output: 24VAC @ 4 amp @ 28VAC @ 3.5 amp supply current.

Features:

  • Fused input protection
  • Green grounding lead

Electrical:

  • Operating temperature:
    • -20° C to 49° C ambient
    • BTU/Hr.: 50.16BTU/Hr.
    • System AC input VA requirement: 109.25VA

Dimensions

  • Dimensions (approximate): 5.625 inches H x 7 inches W x 4.5 inches D (143mm H x 178mm W x 114mm D)
  • Wall mount enclosure for indoor use
  • 1/2 inch and 3/4 inch combination knockouts

Lifetime Warranty

Also Known As
AX-T2428100C, ALT-T2428100C, T2428100C, ALT100T2428100C
Manufacturer
Altronix
Manufacturer Warranty
Lifetime
Model Number
T2428100C
Power Requirements
120VAC
UPC Code
782239942732
