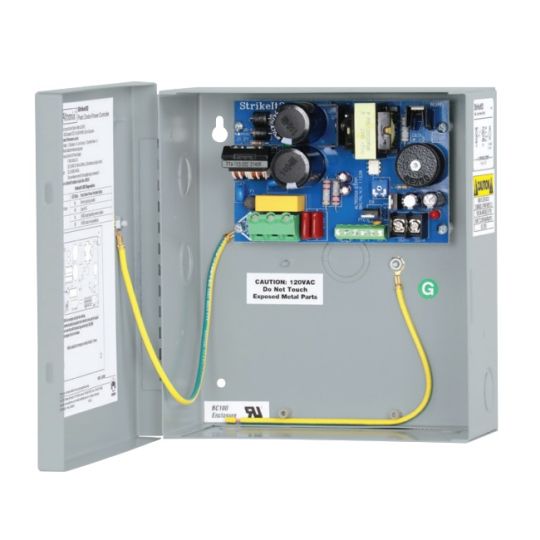

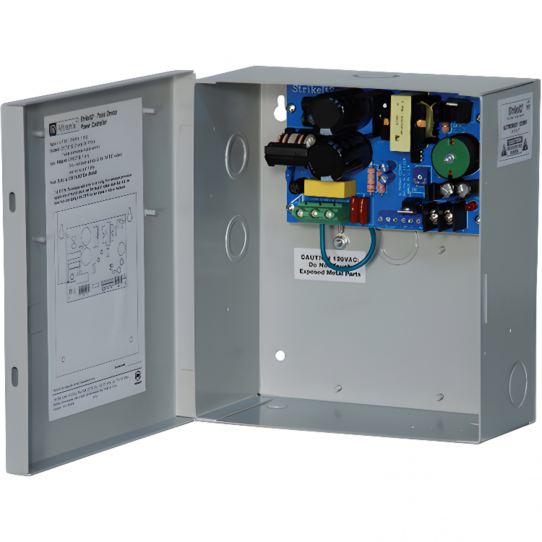

Altronix, STRIKEIT2 Panic Device Controller, Power Supply, 16A Inrush, 24VDC Outputs

PRODUCT OVERVIEW

Altronix StrikeIt2 operates one (1) 24VDC panic hardware device. It is designed to handle the high current surge panic hardware locking devices demand. In addition, an auxiliary power output provides power for accessory devices such as card readers, keypads, REX PIRs, electronic timers, relays, etc.

Features

• 24VDC outputs
• LED Indicators for AC input and DC output
• Input Trigger, NO contact

INPUT SPECIFICATIONS

• Input Voltage: 115VAC, 60Hz, 7A
• Trigger Input: One (1) NO Trigger input
• Fusing: Input fuse rating 6.3A

OUTPUT SPECIFICATIONS

• One (1) 23.2-24VDC lock output rated up to 16A for 300ms, 0.5A continuous hold current
• One (1) 23.2-24VDC filtered regulated auxiliary output rated at 0.5A continuous supply current
• * Note: Total combined current for the outputs may not exceed 1A

BATTERY CHARGING

• 4AH/12VDC (2 within enclosure), larger batteries require separate enclosure
• Type: Sealed lead acid or gel type (batteries sold separately)

DIMENSIONS

• Enclosure Dimensions (approximate): 7.5 inch W x 8.5 inch H x 3.5 inch D (191 mm W x 216 mm H x 89 mm D)
• Product Weight: 4.65 lbs

Certifications

• UL294 (Access Control System Units)
• CSA Standard C22.2 No.205-M1983, Signal Equipment
• CSFM, California State Fire Marshal Approved

Specifications

• Input: 115 VAC, 60 Hz, 7 A; input fuse 6.3 A; one NO trigger input
• Lock Output: One 23.2-24 VDC, up to 16 A for 300 ms, 0.5 A continuous hold
• Auxiliary Output: One 23.2-24 VDC, filtered and regulated, 0.5 A continuous
• Combined Output Limit: Total for both outputs may not exceed 1 A
• Battery Charging: Sealed lead acid or gel; 4 AH/12 VDC (two fit in the enclosure; larger batteries need a separate enclosure); batteries sold separately
• Indicators: LEDs for AC input and DC output
• Use With: One 24 VDC electronic panic hardware device
• Enclosure (approximate): 7.5 in W x 8.5 in H x 3.5 in D (191 x 216 x 89 mm)
• Weight: 4.65 lbs
• Listings: UL 294; CSA C22.2 No. 205-M1983; CSFM
• Use: Interior only
• Warranty: Lifetime
