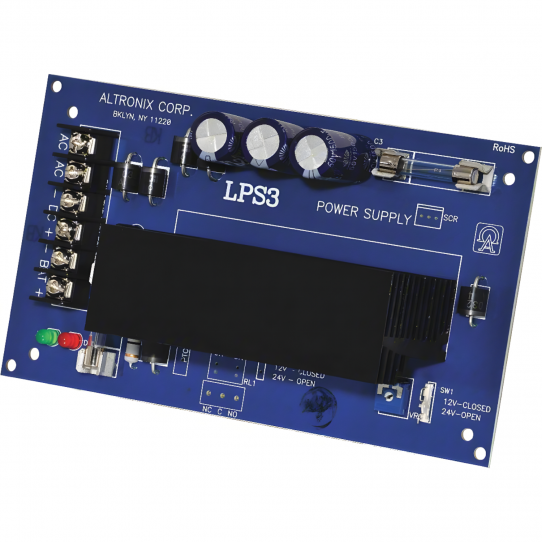

Altronix LPS3 Linear Power Supply Board. 12 or 24VDC @ 2.5A.

Product Overview

LPS3 linear power supply/charger converts a low voltage AC input into a 12VDC/24VDC output. These units are specifically designed to provide the power needed by the most demanding security and access control applications.

Features and Specifications

• Input: 16VAC or 28VAC.
• Output: 12VDC/24VDC selectable output. 2.5-amp continuous supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.
• Battery Backup: Battery leads included.
• Built-in charger for sealed lead acid or gel type batteries.
• Maximum charge current 500mA.
• Automatic switch over to stand-by battery.
  Fused battery protection (circuit breaker available).
• Visual Indicators: AC/DC power LED indicator.
• Electrical: Operating temperature: -20 ° C to 49 ° C ambient.
• BTU/Hr.:
• - 12VDC: 11 BTU/Hr.
• - 24VDC: 23 BTU/Hr.

Dimensions

• Dimensions (approximate): 4 inches W x 7 inches L x 2 inches H (101.6mm W x 177.8mm L x 50.8mm H)

Lifetime Warranty

Specifications

• Input: 16 VAC or 28 VAC
• Output: Selectable 12/24 VDC, 2.5 A continuous
• Battery Charger: Sealed lead acid or gel; maximum charge current 500 mA; battery leads included
• Protection: Short circuit and thermal overload; fused battery protection
• Indicator: AC/DC power LED
• Operating Temperature: -20°C to 49°C ambient
• Heat Output: 12 VDC, 11 BTU/hr; 24 VDC, 23 BTU/hr
• Dimensions (approximate): 4 in W x 7 in L x 2 in H (101.6 x 177.8 x 50.8 mm)
• Warranty: Lifetime
