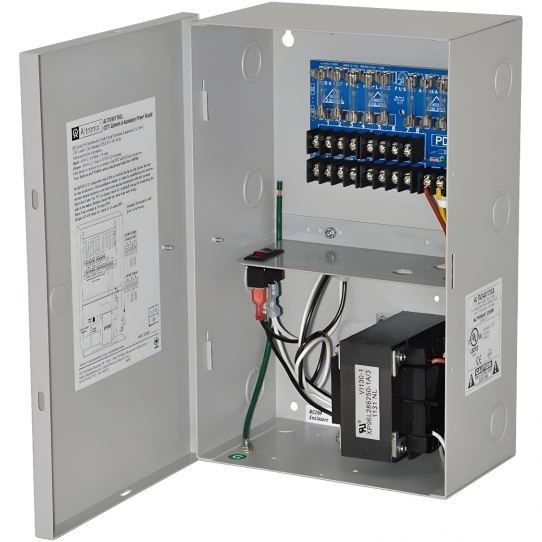

Altronix ALTV248175UL 8 Outputs CCTV 24VAC @ 7A
Processing...

Altronix ALTV248175UL 8 Outputs CCTV 24VAC @ 7A

$182.70

Overview

ALTV248175UL provides 24VAC or 28VAC distributed via Eight (8) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.



Key Features:
• 8 fused outputs
• 24VAC output
• 7 amp max
• Lifetime Warranty.

More Info +


Qty

Product Details


Product Overview

ALTV248175UL provides 24VAC or 28VAC distributed via Eight (8) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.

Features and Specifications

Input:
• 115VAC, 50/60Hz, 1.73 amp.

Output:
• Eight (8) fuse protected outputs.
• 24VAC @ 7 amp (170VA) supply current (0.875 amp per device, 3.5 amp max.) or 28VAC @ 6.25 amp (175VA) supply current (0.781 amp per device, 3.5 amp max.).
• Outputs are rated @ 3.5 amp.
• Surge suppression.

Electrical:
• Operating temperature: 0° C to 49° C ambient.
• BTU/Hr.:
• - 24VAC: 85.99BTU/Hr.
• - 28VAC: 89.57BTU/Hr.
• System AC input VA requirement: 198.95VA.

Features:
• Secondary fuse rated @ 10 amp/250V.
• AC power LED.
• Power ON/OFF switch.
• Spare fuses provided. (all models w/primary and/or secondary fuses).
• Lifetime Warranty

Dimensions

• Dimensions (approximate): 12.25"H x 7.25"W x 4.5"D (311mm H x 184mm W x 114mm D)

Maglocks.com Rating
Best
Manufacturer
Altronix
Manufacturer Warranty
Lifetime
Model Number
ALTV248175UL
Power Requirements
24 VAC
