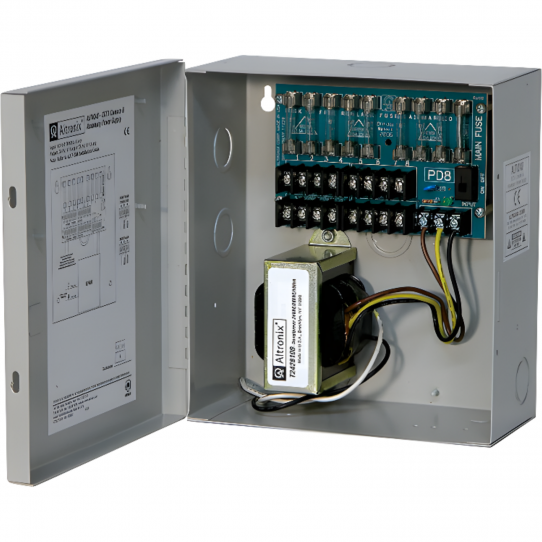

Altronix ALTV248 8 Outputs CCTV 24VAC @ 4A

Product Overview

ALTV248 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via Eight (8) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.

Features and Specifications

• Input:
• 115VAC, 50/60Hz, 0.9amp.
• Output:
• Eight (8) fuse protected outputs.
• 24VAC @ 4amp (100VA) supply current (0.5amp per device, 3.5amp max.) or 28VAC @ 3.5amp (100VA) supply current (0.438amp per device, 3.5amp max.).
• Outputs are rated @ 3.5amp.
• Surge suppression.
• Electrical:
• Operating temperature: 0 ° C to 49 ° C ambient.
• BTU/Hr.: 24VAC: 49.13BTU/Hr. 28VAC: 50.16BTU/Hr.
• System AC input VA requirement: 103.5VA.
• Features:
• Secondary fuse rated @ 5amp/250V.
• AC power LED.
• Power ON/OFF switch.
• Spare fuses provided. (all models w/primary and/or secondary fuses).
• Lifetime Warranty

Dimensions

• Dimensions (approximate): 8.5 inch H x 7.5 inch W x 3.5 inch D (216mm H x 191mm W x 89mm D)

Specifications

• Model: ALTV248
• Also known as: AX-ALTV248, ALT-ALTV248, ALT100ALTV248
• Manufacturer: Altronix
• Type: AC wall-mount CCTV power supply, 8 fused outputs
• Input: 115 VAC, 50/60 Hz, 0.9 A
• Output: 24 VAC at 4 A (100 VA) or 28 VAC at 3.5 A (100 VA)
• Outputs: 8 fuse-protected; 3.5 A rated; 0.5 A per device at 24 VAC (0.438 A at 28 VAC)
• Secondary fuse: 5 A / 250 V
• System AC input VA requirement: 103.5 VA
• Heat output: 49.13 BTU/hr (24 VAC); 50.16 BTU/hr (28 VAC)
• Operating temperature: 0°C to 49°C ambient (32°F to 120°F)
• Dimensions: 8.5 inches H x 7.5 inches W x 3.5 inches D (216 mm x 191 mm x 89 mm) (approximate)
• UPC: 782239930173
• Warranty: Lifetime
