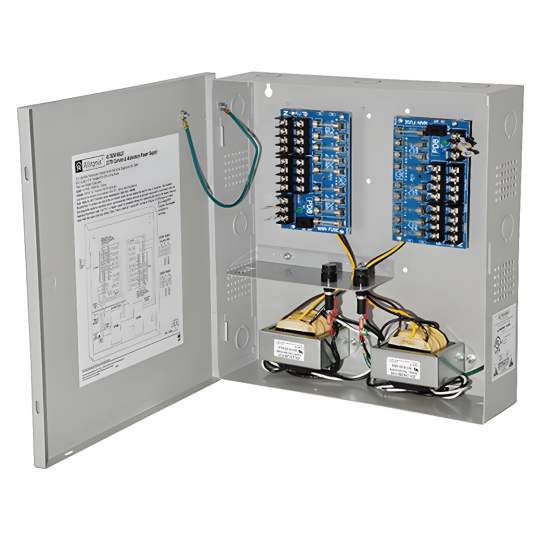

Altronix ALTV2416ULX 16 Outputs CCTV 24VAC @ 7Amp

Product Overview

ALTV2416ULX provides 24VAC or 28VAC distributed via Sixteen (16) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.

Features and Specifications

Input:

• 115VAC, 50/60Hz, 1.8-amp

Output:

• Sixteen (16) fuse protected outputs
• 24VAC @ 7-amp (170VA) supply current (0.438-amp per device, 3.5-amp max.) or 28VAC @ 6-amp (170VA) supply current (0.375-amp per device, 3.5-amp max.)
• Outputs are rated @ 3.5-amp. Surge suppression

Electrical:

• Operating temperature: 0 ° C to 49 ° C ambient
• BTU/Hr.: 85.99 BTU/Hr.
• System AC input VA requirement: 207VA

Features:

• Secondary fuse rated @ 5-amp/250V
• AC power LED
• Power ON/OFF switch
• Spare fuses provided. (all models w/primary and/or secondary fuses)
• Lifetime Warranty

Dimensions

• Dimensions (approximate): 13.5 inches H x 13 inches W x 3.25 inches D (343mm H x 330mm W x 83mm D)

Specifications

• Model: ALTV2416ULX
• Also known as: AX-TV2416ULX, ALT-ALTV2416ULX, ALT100ALTV2416ULX
• Manufacturer: Altronix
• Type: AC wall-mount CCTV power supply, 16 fused outputs
• Input: 115 VAC, 50/60 Hz, 1.8 A
• Output: 24 VAC at 7 A (170 VA) or 28 VAC at 6 A (170 VA)
• Outputs: 16 fuse-protected; 3.5 A rated; 0.438 A per device at 24 VAC (0.375 A at 28 VAC)
• Secondary fuse: 5 A / 250 V
• System AC input VA requirement: 207 VA
• Heat output: 85.99 BTU/hr
• Operating temperature: 0°C to 49°C ambient (32°F to 120°F)
• Dimensions: 13.5 inches H x 13 inches W x 3.25 inches D (343 mm x 330 mm x 83 mm) (approximate)
• UPC: 782239930616
• Warranty: Lifetime
