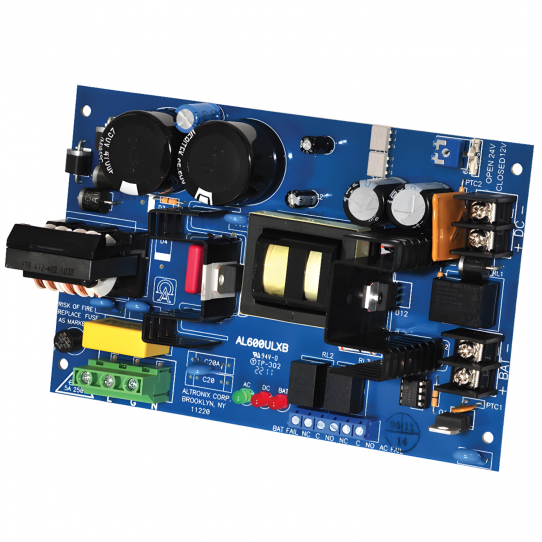

Altronix AL600ULXB Off-Line Switching Power, 12/24VDC

Product Overview

AL600ULXB is a UL Recognized power supply/charger that converts a 115VAC, 60Hz input into a single 12VDC or 24VDC non power-limited output.

Input:

• Input 115VAC, 60Hz, 3.5amp.

Output:

• 12VDC or 24VDC selectable output.
• 6-amp continuous supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.
• Maximum charge current 0.7amp.

Supervision:

• AC fail supervision (form "C" contacts).
• Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
• Low battery supervision (form "C" contacts).
• Battery presence supervision (form "C" contacts).

Visual Indicators:

• AC input and DC output LED indicators.

Electrical:

• Operating temperature: 0 ° C to 49 ° C ambient. 36.85 or 73.70 BTU/Hr.
• System AC input VA requirement: 402.5VA.
• Lifetime Warranty

Dimensions

• Dimensions (approximate): 4.5 inch W x 7.8 inch L x 2.6 inch H (114.3mm W x 198.12mm L x 66.04mm H)
