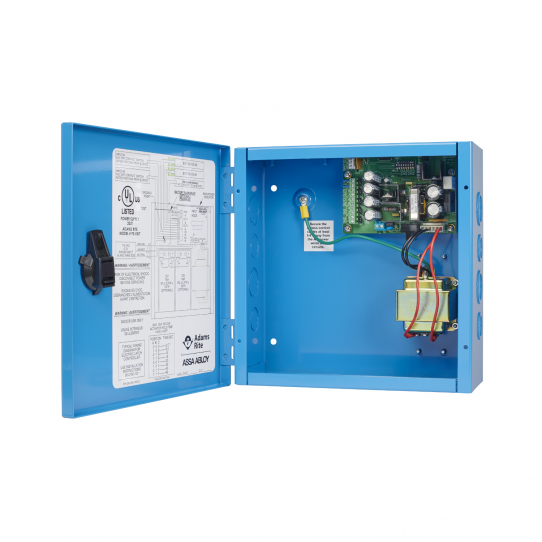

Adams Rite, PS-EXIT Power Supply for LR/MLR Exit Devices, 24VDC Output

Product Overview

The PS-EXIT Power Supply is specifically designed to protect and optimize the performance of Adams Rite 8000/3000 Series exit devices with Motorized Latch Retraction (MLR) or Electric Latch Retraction (LR) options by delivering filtered and regulated power.

This power supply is designed to provide power and control for up to two MLR or LR exit devices. Each exit device is controlled by a timer that is initiated by a switch closure. The timer is user-configured and holds the exit device(s) in the unlatched position for 2 to 60 seconds. At the end of the selected time, the exit device(s) will re-latch. If the switch controlling the exit device is closed longer than the selected time, the exit device remains unlatched until the controlling switch is released.

Product Features

• Power up to two 8000/3000 MLR or LR exit devices
• User configurable timer, initiated by switch closure. (2-60 seconds)
• Hinged steel cabinet

Operating Modes

• Single Input (Sequential Operation): Either input retracts the corresponding exit device followed by retraction of second device. Control double-door exit with one input.
• Dual Input (Independent Operation): Each exit device is controlled by its own input switch. Control two separate exits with two inputs.

Product Specifications

• Input Power: 115 VAC
• Rated Output Current: Up to 0.8A per channel continuous
• Rated Max Pull-in Current: Up to 17 A

Models

• PS-EXIT - Power Supply for all 8000 and 3000 Series Exit Devices with Motorized Latch Retraction(MLR) or Electric Latch Retraction (LR) option.

Certifications

• UL 294
• CAN/CSA-C22.2 No. 223
