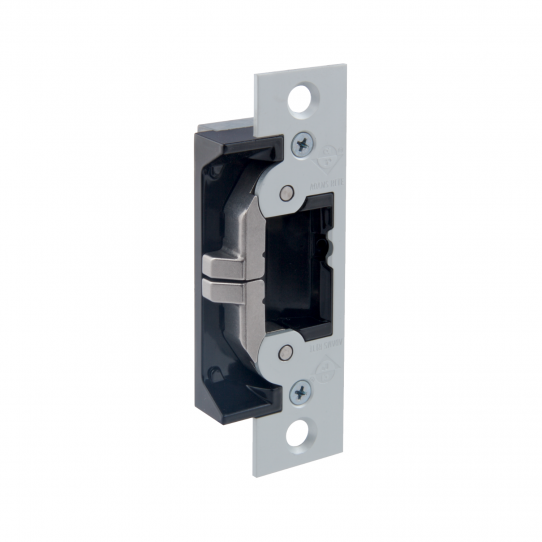

Adams Rite 7440 Strike Wood or Steel Doors Gr 1

Product Overview

Adams Rite is known around the world for durable and reliable door hardware. Our latest line of premium electric strikes, the UltraLine 7400 series, casts that reputation in solid steel. UltraLine Strikes feature an adjustable split-jaw design, and can operate with up to 30lbs. of door preload that can disable other electric strikes.

Model

• 7440 - For Hollow Metal and Wood Jambs 1-1/4 inch x 4-7/8 inch faceplate with square corners.

Specifications

• Voltage: Field selectable to match power source: 12, 16 or 24 VAC/VDC
• Current Draw: 12 VDC 440 mA, 16 VDC 458 mA (requires 16 VDC adapter, P/N VA 7400-16VDC), 24 VDC 230 mA, 12 VAC 163 mA, 16 VAC 228 mA, 24 VAC 84 mA
• Faceplate: 1-1/4 inch x 4-7/8 inch, square corners
• Frame: Hollow metal or wood jambs
• Door Preload: Operates with up to 30 lbs.
• Option: M - Latch bolt monitor
