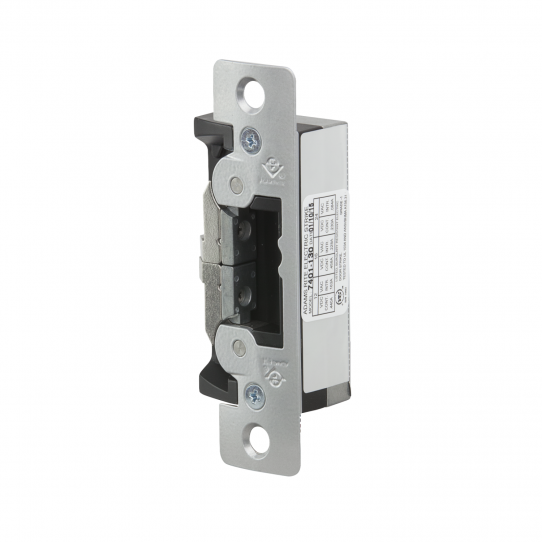

Adams Rite 7400, 7401 Strike, Aluminum Jambs or Stiles, Gr 1
Processing...

Adams Rite 7400, 7401 Strike, Aluminum Jambs or Stiles, Gr 1

$219.00

Overview

Designed for standard Key-in-Knob/Lever locksets, Adams Rite Mortise Exit Devices and Adams Rite Deadlatchs.

Features:
• One Ton Jaw Strength
• Low Current Draw
• UL Listed for Burglary Resistance
• Compact Strike Body
• Field-Reversible for Fail-Safe/Secure
• Modular Faceplate Selection
• Tested to One Million Cycles
• Exceeds ANSI/BHMA Grade 1 standards

More Info +


Select Model:
Select Faceplate Finish:
Options

Qty

Product Details

Product Overview

Adams Rite is known around the world for durable and reliable door hardware. Our latest line of premium electric strikes, the UltraLine 7400 series, casts that reputation in solid steel. UltraLine Strikes feature an adjustable split-jaw design, and can operate with up to 30lbs. of door “preload” that can disable other electric strikes.

Model

7400:  For Aluminum Jambs 1-1/4" x 4-7/8" faceplate with radius corners.
7401:  For Radius Aluminum Stiles 1-1/4" x 4-7/8" faceplate with radius corners.

Specifications

Field selectable voltage to match power source of 12, 16, or 24 VAC/VDC

12VDC  440mA
16VDC  458mA  * Requires 16VDC adapter (P/N VA 7400-16VDC)
24VDC  230mA

12VAC  163mA
16VAC  228mA
24VAC    84mA

Options

M  - Latch bolt monitor

For Use With
Cylindrical Locksets,Deadlatch
Grade
Grade 1
Maglocks.com Rating
Best
Manufacturer
Adams Rite
Manufacturer Warranty
3 Year
Model Number
7400/7401
Power Requirements
24V/12V AC/DC
Status Monitor
Optional
