5V Regulator Board Fused

Product Overview

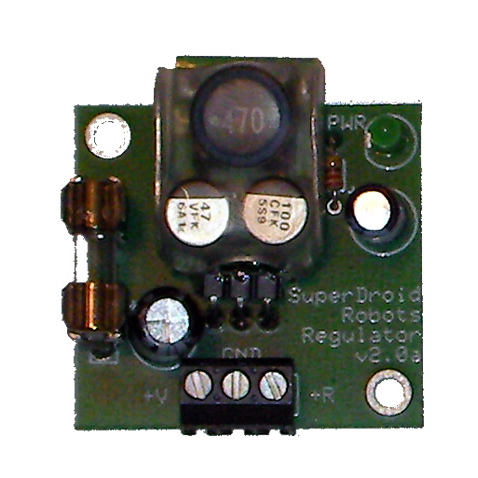

5V Regulator board. Terminal strip with a common ground, input, and 5VDC output. Includes 1A fuse, filtering capacitors, and power status LED. Input voltage should be around 7.2VDC to 24VDC.

Flexible / adaptable

• The board is spaced out on 0.1 inch or more grid that is easy to solder with no surface mount components. The board is approximately 1.25 inch square.

Operation

• Connect power leads to the terminal strip. The center terminal is common ground, the terminal closest to the fuse is the unregulated voltage input.
• The input voltage needs to be ~7-25VDC.
• Connect the load to the terminal strip. The center terminal is common ground. The terminal closest to the label is regulated 5 VDC up to 1Amp.
