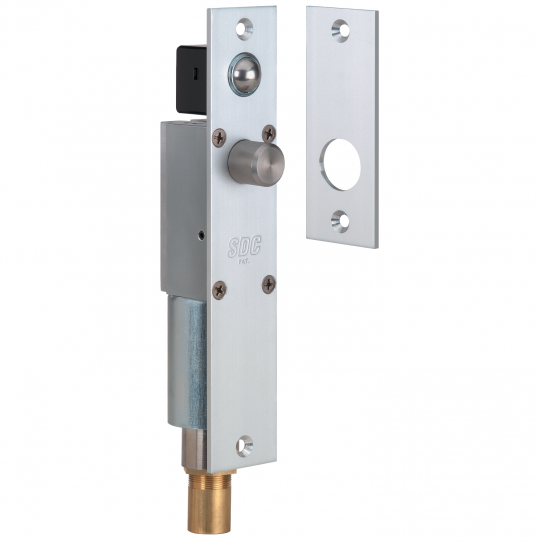

SDC PBD2090A Panic Exit Device Top Latch Release

$425.00 $500.00

Overview

Top Latch Release for Dor-O-Matic and Kawneer Vertical Rod Exit Devices. The PD2090A PanicLok permits access control and remote timer control of narrow stile glass doors equipped with Dor-O-Matic or Kawneer concealed vertical rod exit devices. While the PanicLok is used to control entry from the outside only, the exit device is always operable from the inside for uninhibited egress.

More Info +


Select Model (U 630 Dull Stainless Steel finish standard):
Options

Qty

Product Details

Product Overview

Top Latch Release for Dor-O-Matic and Kawneer Vertical Rod Exit Devices. The PD2090A PanicLok permits access control and remote timer control of narrow stile glass doors equipped with Dor-O-Matic or Kawneer concealed vertical rod exit devices. While the PanicLok is used to control entry from the outside only, the exit device is always operable from the inside for uninhibited egress.

FAILSECURE

When the PanicLok is energized the door is unlocked for free access and egress. When the PanicLok is de-energized, the is door locked on the exterior only. A power supply with battery backup capability is required for electrical unlocking during a power failure.

POWERFUL EXTRA HEAVY DUTY DESIGN

The PanicLok is designed with just a few moving parts. The solenoid is manufactured by SDC to precision specifications and provides superior performance for years of service.

AUTO RELOCK SWITCH

A ball type auto relock ball switch assembly is standard to keep the lock bolt retracted when the door is open. When depressed on door closure the ball switch causes the bolt to project, locking the door automatically. The auto relock assembly is also adjustable to compensate for wide door gaps.

Model

  • PD2090ALU LH/RHR failsecure - SDC Spacesaver® Exit Device Latch Release for Dor-O-Matic/Kawneer Exit Devices, Narrow, Mortise, 24VDC, 630 Stainless Steel, Left Hand or Right Hand Reverse.
  • PD2090ARU RH/LHR failsecure - SDC Spacesaver® Exit Device Latch Release for Dor-O-Matic/Kawneer Exit Devices, Narrow, Mortise, 24VDC, 630 Stainless Steel, Right Hand or Left Hand Reverse.

FEATURES

  • 24VDC
  • Stainless steel finish standard

Specifications

  • Face Plate: 10"H x 1-1/2"W x 1/8"D (254 x 38.1 x 3.175mm)
  • Frame I.D. Requirements: 1.5"H x 1.5"D (38.1mm x 38.1mm)
  • Bolt: Beveled Stainless Steel
  • Voltage: 24VDC only (Suffix C)
  • Current: 2.5 Amp Inrush, 400 mA Continuous

Options

Door and lock status monitoring sensors are installed and concealed in the lock. The need for additional door and frame preparations is eliminated. Magnetic bolt status sensor is behind the faceplate to inhibit tampering. Applications include: Remote Door and Lock Status; Mantraps; Air/Clean Rooms; Communicating Bathrooms; Door Hold Open Alarms and CCTV Activation.

  • B Bolt Position Sensor - SPDT: Magnetic Bolt Status Switch SPDT 0.25 Amp @ 30VDC Indicates bolt locked and bolt unlocked.
  • D Door Posiiton Sensor - SPDT: Mechanical Door Position Switch SPDT 5 Amps @ 30VDC Integral to the auto relock ball switch assembly. Indicates, door closed and door open. Recommended for minimum security applications only
  • BR64XL Rectifier for AC operation
Maglocks.com Rating
Best
Manufacturer
SDC Security
Manufacturer Warranty
2 Year
Model Number
PBD2090A
Power Requirements
24VDC
Status Monitor
Optional
1 Question asked on SDC PBD2090A Panic Exit Device Top Latch Release



Q Troy Starlin • 11/07/2018, 3:05:40 PM I was wondering if there is anymore info on SDC PBD2090A PANIC EXIT DEVICE TOP LATCH RELEASE. i have a door with a similar system strike -o-matic 2000 and trying to find something replace it.
A 12/03/2018, 9:00:49 AM Troy, the information on the product page and the associated documents (see the document tab) represent the available literature on the SDC PBD2090A. However, our job is to make your job easier. Just call customer service at 866.500.5625. They will walk through your current set-up, maybe ask you to send a couple digital photos from your phone of the door. The advisor will research the product and provide you with recommendations. The service is free and it will give you compatible replacement options.
